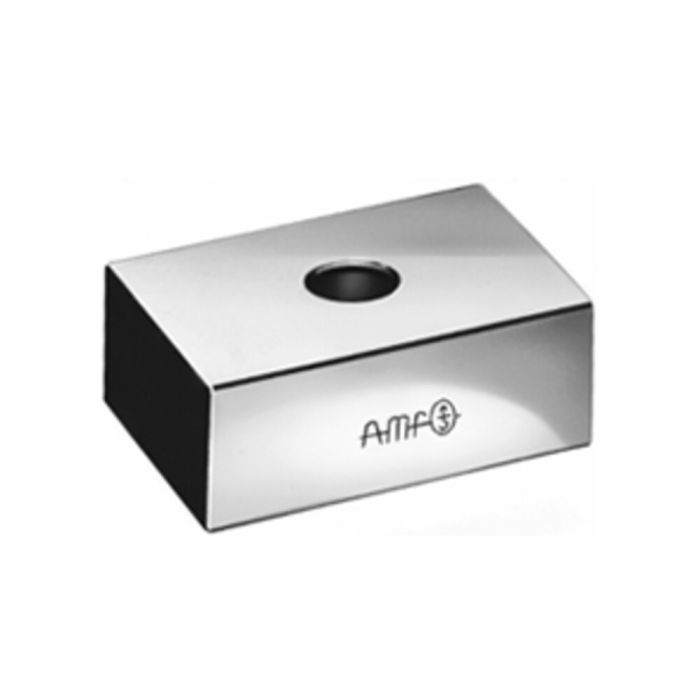

Low type tenons
Dimensions 32x24x12 mm, screw DIN84 M6x16
Order no.
71761
Application:
Low-type tenons are useful and inexpensive to use, when a fixture is always used on the same machine. For very heavy fixtures we recomend the use of loose type tenons DIN 6323.
| Order no. | 71761 |
|---|---|
| Produkttyp | Type tenons |
| Nut [mm] | 24 |
| Länge [mm] | 32 |
| Breite [mm] | 24 |
| Höhe [mm] | 12 |
| Weight [g] | 65 |
