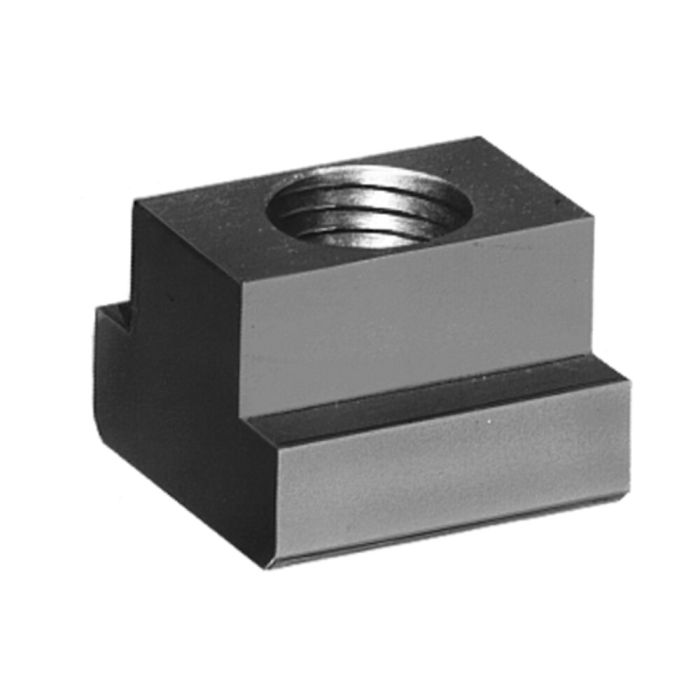

Nuts for T-slots (T-nuts)

Thread M10, slot 18 mm, test force 46 kN*

Order no.

81265

Order no.	D x Slot	Test force [kN]	A	E	H	k	Packaging unit	Weight [g]
140301	M 8x12*	29,0	11,7	18	14	7	50	22
140327	M 8x14*	29,0	13,7	22	16	8	50	41
153460	M 8x16*	29,0	15,7	25	18	9	25	50
153478	M 8x18*	29,0	17,7	28	20	10	25	91
155630	M16x22*	128,0	21,7	35	28	14	25	176
158899	M20x28*	196,0	27,7	44	36	18	-	355
158907	M12x18*	67,0	17,7	28	20	10	25	82
159418	M16x24*	128,0	23,7	40	32	16	10	260
159426	M16x28*	128,0	27,7	44	36	18	-	383
80002	M 5x 6	11,4	5,7	10	8	4	50	4
80010	M 6x 8	16,0	7,7	13	10	6	100	9
80028	M 8x10	29,0	9,7	15	12	6	100	12
80036	M10x12	46,0	11,7	18	14	7	50	22
80044	M12x14	67,0	13,7	22	16	8	50	35
80051	M14x16*	-	15,7	25	18	9	25	50
80069	M16x18	128,0	17,7	28	20	10	50	70
80077	M18x20*	-	19,7	32	24	12	25	110
80085	M20x22	196,0	21,7	35	28	14	25	155
80093	M22x24*	-	23,7	40	32	16	10	220
80101	M24x28	282,0	27,7	44	36	18	-	322
80119	M27x32*	-	31,6	50	40	20	-	460
80127	M30x36	448,0	35,6	54	44	22	-	590
80135	M36x42	653,0	41,6	65	52	26	-	1010
80143	M42x48	653,0	47,6	75	60	30	-	1600
80150	M48x54	653,0	53,6	85	70	34	-	2300
80168	M12x16*	67,0	15,7	25	18	9	25	50
80176	M14x18*	-	17,7	28	20	10	25	70
80184	M16x20*	128,0	19,7	32	24	12	25	110
80192	M20x24*	196,0	23,7	40	32	16	10	235
80200	M24x30*	282,0	29,7	48	38	19	-	440
80218	M24x36*	282,0	35,6	54	44	22	-	700
80226	M30x42*	448,0	41,6	65	52	26	-	1150
80234	M10x14*	46,0	13,7	22	16	8	50	37
80242	M18x22*	-	21,7	35	28	14	10	163
80358	M22x28*	-	27,7	44	36	18	10	340
80366	M10x16*	46,0	15,7	25	18	9	25	60
81265	M10x18*	46,0	17,7	28	20	10	25	87

Details

Note:
The full load capacity can only be achieved if the screw connection is applied over the entire length "H" of the thread.
For test force see DIN 508

On request:
Special makes on request.

* Size not included in DIN, dimensions similar to DIN

Technical specifications

More Information
Order no.	81265
Product type	Nuts for T-slots
Thread [M]	10
Slot [mm]	18

CAD

Downloads

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products
