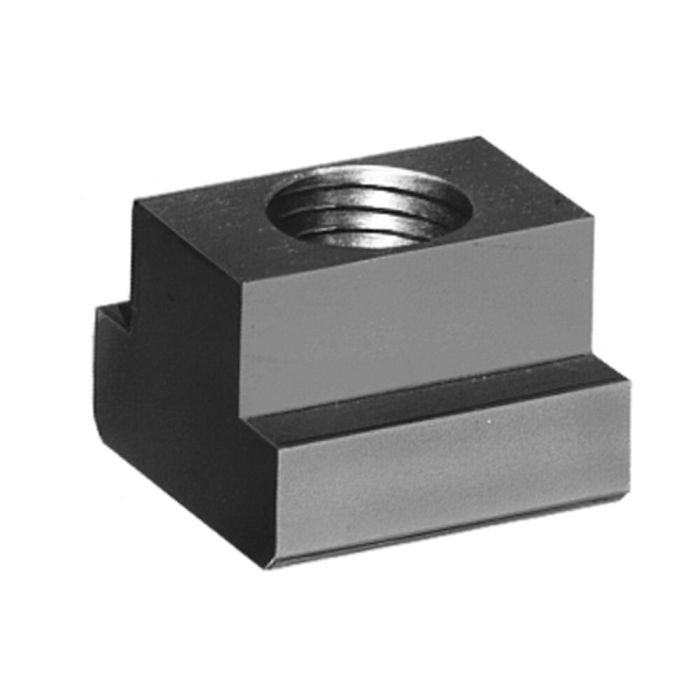

Nuts for T-slots (T-nuts) Thread M30, slot 36 mm, test force 448 kN
Order no. D x Slot Test force A E H k Packaging Weight Availability Your Price 140301 M 8x12* 29,0 11,7 18 14 7 50 22
140327 M 8x14* 29,0 13,7 22 16 8 50 41
153460 M 8x16* 29,0 15,7 25 18 9 25 50
153478 M 8x18* 29,0 17,7 28 20 10 25 91
155630 M16x22* 128,0 21,7 35 28 14 25 176
158899 M20x28* 196,0 27,7 44 36 18 - 355
158907 M12x18* 67,0 17,7 28 20 10 25 82
159418 M16x24* 128,0 23,7 40 32 16 10 260
159426 M16x28* 128,0 27,7 44 36 18 - 383
80002 M 5x 6 11,4 5,7 10 8 4 50 4
80010 M 6x 8 16,0 7,7 13 10 6 100 9
80028 M 8x10 29,0 9,7 15 12 6 100 12
80036 M10x12 46,0 11,7 18 14 7 50 22
80044 M12x14 67,0 13,7 22 16 8 50 35
80051 M14x16* - 15,7 25 18 9 25 50
80069 M16x18 128,0 17,7 28 20 10 50 70
80077 M18x20* - 19,7 32 24 12 25 110
80085 M20x22 196,0 21,7 35 28 14 25 155
80093 M22x24* - 23,7 40 32 16 10 220
80101 M24x28 282,0 27,7 44 36 18 - 322
80119 M27x32* - 31,6 50 40 20 - 460
80127 M30x36 448,0 35,6 54 44 22 - 590
80135 M36x42 653,0 41,6 65 52 26 - 1010
80143 M42x48 653,0 47,6 75 60 30 - 1600
80150 M48x54 653,0 53,6 85 70 34 - 2300
80168 M12x16* 67,0 15,7 25 18 9 25 50
80176 M14x18* - 17,7 28 20 10 25 70
80184 M16x20* 128,0 19,7 32 24 12 25 110
80192 M20x24* 196,0 23,7 40 32 16 10 235
80200 M24x30* 282,0 29,7 48 38 19 - 440
80218 M24x36* 282,0 35,6 54 44 22 - 700
80226 M30x42* 448,0 41,6 65 52 26 - 1150
80234 M10x14* 46,0 13,7 22 16 8 50 37
80242 M18x22* - 21,7 35 28 14 10 163
80358 M22x28* - 27,7 44 36 18 10 340
80366 M10x16* 46,0 15,7 25 18 9 25 60
81265 M10x18* 46,0 17,7 28 20 10 25 87
Note:
On request:
* Size not included in DIN, dimensions similar to DIN
More Information Order no. 80127 Product type Nuts for T-slots Thread [M] 30 Slot [mm] 36
