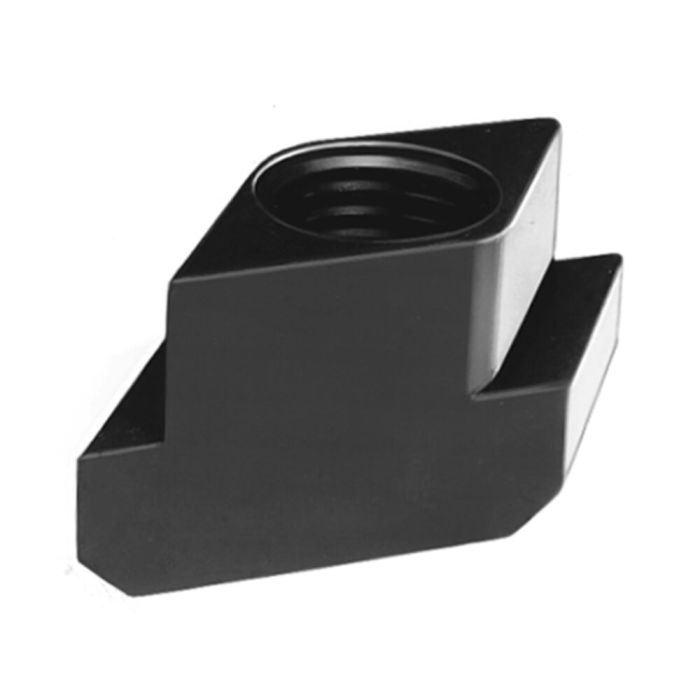

Nuts for T-slots Rhombus
Thread M30, slot 36 mm, test force 296 kN
Order no.
80325
Application:
- additional setup of a clamping point for a fixture already clamped
- subsequent setup of a clamping point for machine table T-slots already occupied
- Insertion of the nut for "Rhombus" T-slots from above into the T-slot and turning up to the stop in the T-slot
- To be used in conjunction with the studs DIN 6379
Note:
The nuts for "Rhombus" T-slots are tempered to grade 10. Owing to the reduced contact surface in the T-slot, the load capacity is less than with the comparable sizes of DIN 508. The screw connection must be applied over the entire length of thread "H".
| Order no. | 80325 |
|---|---|
| Product type | Nuts for T-slots |
| Thread [M] | 24 |
| Slot [mm] | 28 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Hexagonal nuts with collar (1.5 d high) Nr. 82636 Turned, size M30, height 45 mm, thread width 46 mm
