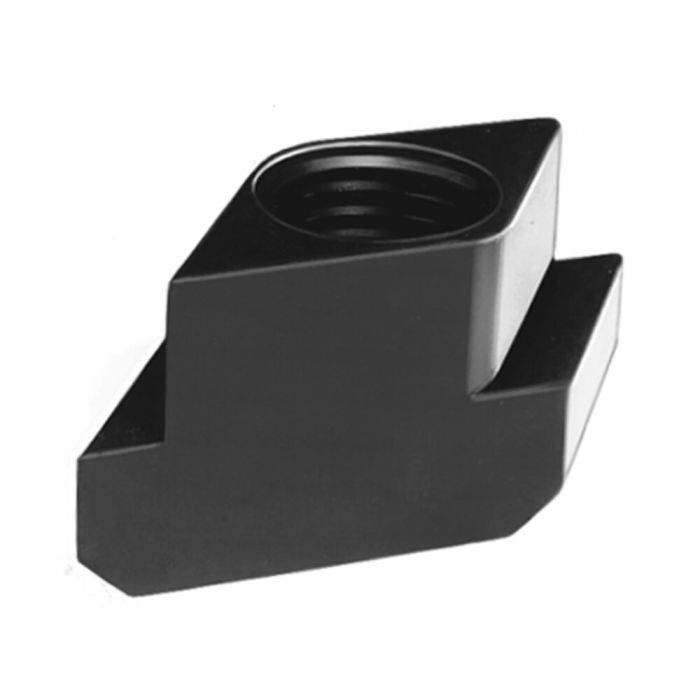

Nuts for T-slots Rhombus
Thread M16, slot 18 mm, test force 80 kN
Order no.
80283
Note:
Heat treatment for achieving grade 10 according to 22-32 HRC. Harden: 880°C for 45 minutes, quench in oil at 75°C. Temper: 550°C for 2 hours. This blank can be used to economically produce "Nuts for T-slots" with customised thread.
| Order no. | 80283 |
|---|---|
| Product type | Nuts for T-slots |
| Thread [M] | 16 |
| Slot [mm] | 18 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hexagonal nuts with collar (1.5 d high) Nr. 82578 Turned, size M16, height 24 mm, thread width 24 mm
- Studs for nuts and T-slots, strength class 12.9 Nr. 82180 Strength class 12.9, thread M16, length 80 mm
