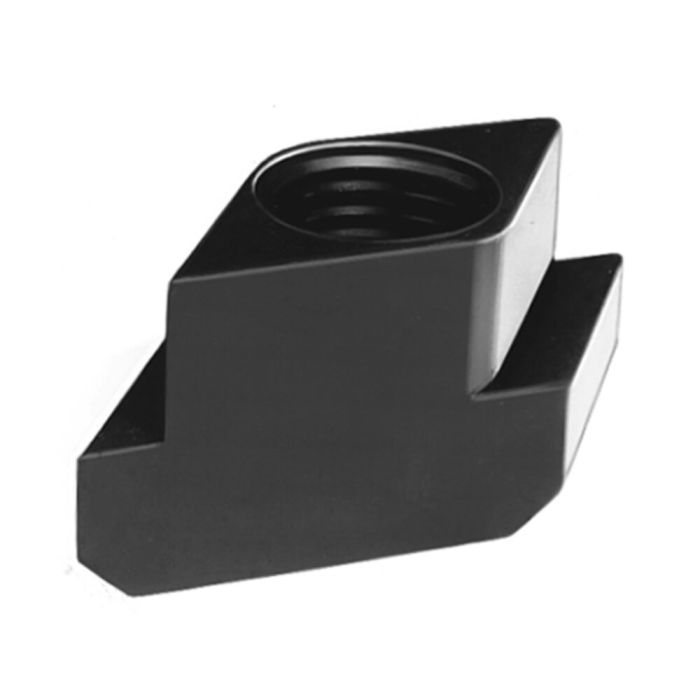

Nuts for T-slots Rhombus
Thread M10, slot 12 mm, test force 30 kN
Order no.
80259
Application:
- additional setup of a clamping point for a fixture already clamped
- subsequent setup of a clamping point for machine table T-slots already occupied
- Insertion of the nut for "Rhombus" T-slots from above into the T-slot and turning up to the stop in the T-slot
- To be used in conjunction with the studs DIN 6379
Note:
The nuts for "Rhombus" T-slots are tempered to grade 10. Owing to the reduced contact surface in the T-slot, the load capacity is less than with the comparable sizes of DIN 508. The screw connection must be applied over the entire length of thread "H".
| Order no. | 80259 |
|---|---|
| Product type | Nuts for T-slots |
| Thread [M] | 10 |
| Slot [mm] | 12 |
