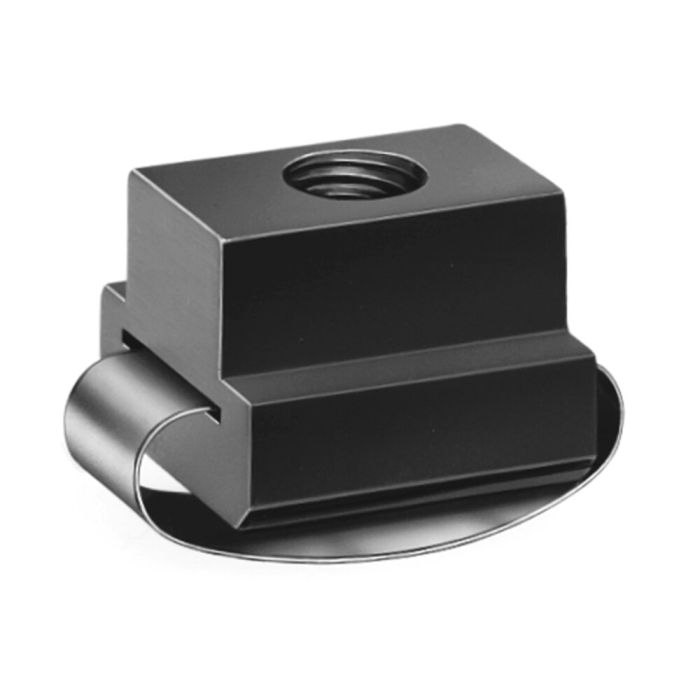

T-nuts with spring
Thread M10, slot 12 mm, test force 46 kN
| Order no. | D x Slot | Test force
[kN] | A | E | F | H | k | L | Weight
[g] | Availability | Your Price |
| 89730 | M8x12 | 29 | 11,7 | 18 | 12,5 | 14 | 7 | 31 | 24 | | |
| 89748 | M10x12 | 46 | 11,7 | 18 | 12,5 | 14 | 7 | 31 | 21 | | |
| 89763 | M10x14 | 46 | 13,7 | 22 | 13,5 | 16 | 8 | 33 | 38 | | |
| 89771 | M12x14 | 67 | 13,7 | 22 | 13,5 | 16 | 8 | 33 | 34 | | |
| 89839 | M16x18 | 128 | 17,7 | 28 | 17,5 | 20 | 10 | 43 | 70 | | |
| 89904 | M20x22 | 196 | 21,7 | 35 | 21,5 | 28 | 14 | 56 | 153 | | |
| | | | | | | | | | | |
Note:
For test force see DIN 508
Advantage:
This extended form safegards the T-slots of precission machine tables.
More Information | Order no. | 89748 |
|---|
| Product type | Nuts for T-slots |
|---|
| Thread [M] | 10 |
|---|
| Slot [mm] | 12 |
|---|
