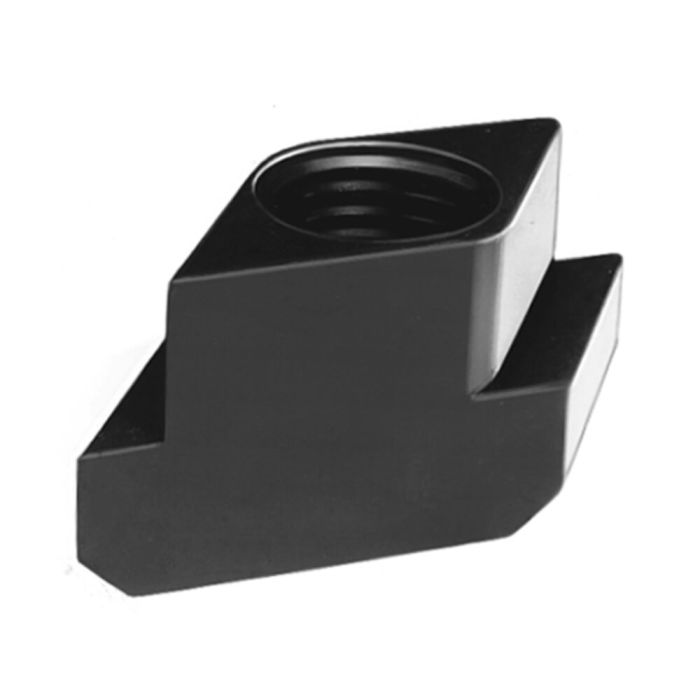

Nuts for T-slots Rhombus Thread M36 slot 42 mm, test force 431 kN
Order no. D x Slot Test force A E H k Packaging Weight Availability Your Price 158220 M10x14 30 13,7 22 16 8 50 27
158238 M10x18 30 17,7 28 20 10 25 64
158246 M16x22 80 21,7 35 28 14 25 119
158253 M16x28 80 27,7 44 36 18 - 278
80259 M10x12 30 11,7 18 14 7 50 14
80267 M12x14 43 13,7 22 16 8 50 22
80275 M14x16 59 15,7 25 18 9 25 33
80283 M16x18 80 17,7 28 20 10 25 46
80291 M18x20 101 19,7 32 24 12 25 70
80309 M20x22 129 21,7 35 28 14 25 98
80317 M24x28 186 27,7 44 36 18 - 215
80325 M30x36 296 35,6 54 44 22 - 430
80333 M36x42 431 41,6 65 52 26 - 690
80341 M16x20 80 19,7 32 24 12 25 79
84731 M20x28 129 27,7 44 36 18 - 248
85993 M 6x8 10 7,7 13 10 6 50 7
87411 M 8x10 19 9,7 15 12 6 50 11
88153 M20x24 129 23,7 40 32 16 - 170
Note:
More Information Order no. 80333 Product type Nuts for T-slots Thread [M] 36 Slot [mm] 42
