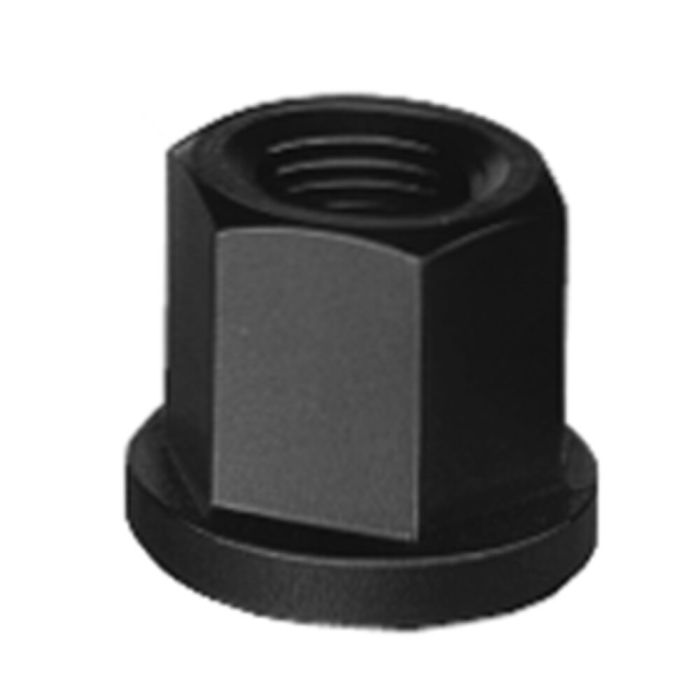

Hexagonal nuts with collar (1.5 d high)

Turned, size M30, height 45 mm, thread width 46 mm

Order no.

82636

Order no.	Size D	A	D1	E	m	S	Packaging unit	Weight [g]
82222	M10	4	22	17,77	15	16	50	21
82230	M12	4	25	20,03	18	18	25	30
82248	M14 *	4,5	28	23,36	21	21	25	43
82255	M22 *	6	40	37,72	33	34	10	200
82511	M42	12	80	72,61	63	65	-	1340
82529	M6	3	14	11,05	9	10	50	6
82537	M8	3,5	18	14,38	12	13	50	12
82545	M10 *	4	22	18,9	15	17 *	50	25
82552	M12 *	4	25	21,1	18	19 *	25	36
82560	M14 *	4,5	28	24,49	21	22 *	25	51
82578	M16	5	31	26,75	24	24	25	70
82586	M18 *	5	34	30,14	27	27	25	95
82594	M20	6	37	33,53	30	30	25	130
82602	M22 *	6	40	35,72	33	32 *	10	160
82610	M24	6	45	39,98	36	36	10	230
82628	M27	8	50	45,63	40	41	-	320
82636	M30	8	58	51,28	45	46	-	470
82644	M36	10	68	61,31	54	55	-	800
82800	M48	14	92	83,91	72	75	-	2040

Advantage:
- very good roughness values on the clamping surface by means of lathed surface

* Size not included in DIN, dimensions similar to DIN
