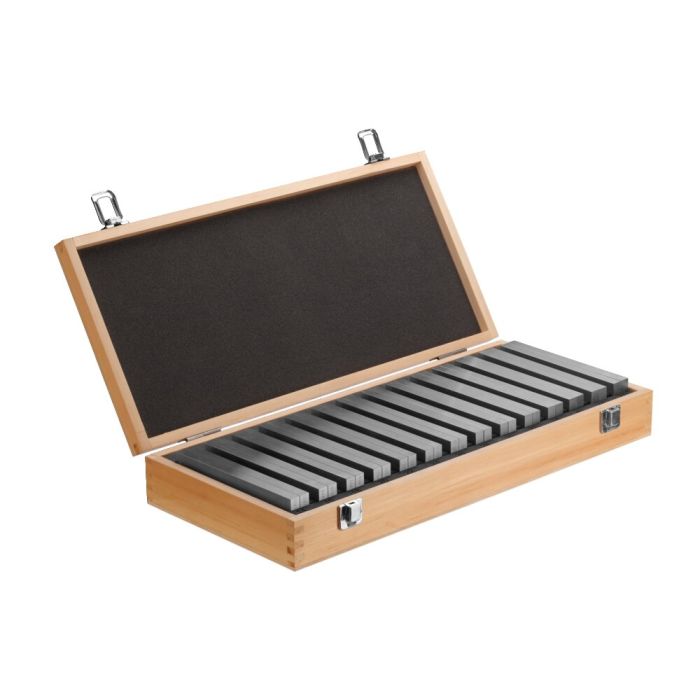

Parallel support set in wooden box
Design:
Content per 1 pair (WxH):
10x14 / 10x16 / 10x18 / 10x20 /10x22 / 10x24 / 10x26 / 10x28 / 10x30 / 10x32 / 10x35 / 10x40 / 10x45 / 10x50 mm.
Quality level:
SP = Super-precision, P = Precision, S = Standard
Application:
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
Advantage:
- high wear resistance and long service life
- wooden box with removable lid for perfect handling at the workplace and safe storage
- different quality levels for any application
| Order no. | 558279 |
|---|---|
| Product type | Parallel supports |
| Quality level | 3 - Super-Precision |
| Length [mm] | 150 |
| Width [mm] | 10 |
| Special features | Set |
