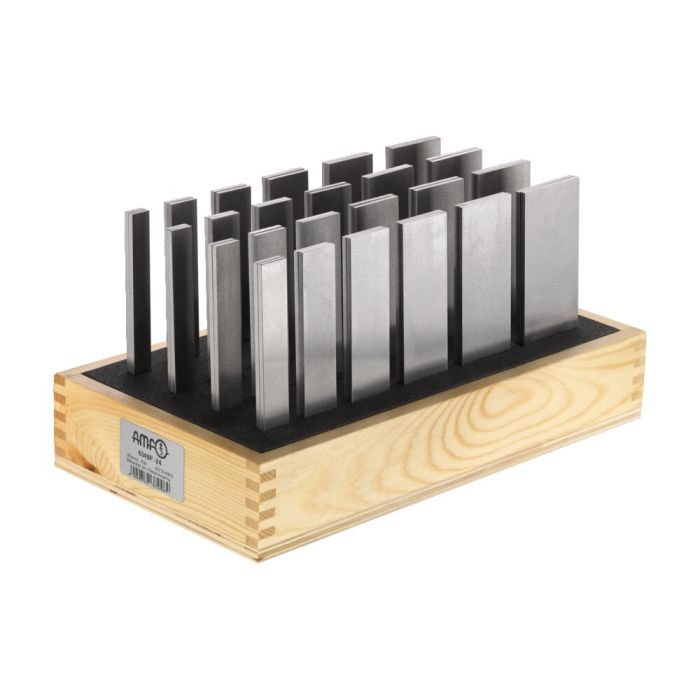

Parallel supports-pairs, precision
Design:
Size 24, content per 1 pair (W x H):
3x11 / 3x13 / 3x15 / 3x16 / 3x17 / 3x18 / 3x20 / 3x21 / 3x22 / 3x23 / 3x25 / 3x26 / 3x27 / 3x28 / 3x30 / 3x31 / 3x32 / 3x33 / 3x35 / 3x36 / 3x37 / 3x38 / 3x40 / 3x42 mm.
Size 32 content per 1 pair (W x H):
3x11 / 3x12 / 3x13 / 3x14 / 3x15 / 3x16 / 3x17 / 3x18 / 3x19 / 3x20 / 3x21 / 3x22 / 3x23 / 3x24 / 3x25 / 3x26 / 3x27 / 3x28 / 3x29 / 3x30 / 3x31 / 3x32 / 3x33 / 3x34 / 3x35 / 3x36 / 3x37 / 3x38 / 3x39 / 3x40 / 3x41 / 3x42 mm.
Wooden stand: 276 x 162 x 55 mm
Application:
These documents are used as washers for workpieces exposed to diverse machining processes.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on front of product.
Advantage:
- high wear resistance and long service life
- Wooden stand for perfect handling at the workplace.
| Order no. | 372482 |
|---|---|
| Product type | Parallel supports |
| Quality level | 2 - Precision |
| Length [mm] | 125 |
| Special features | Set |
