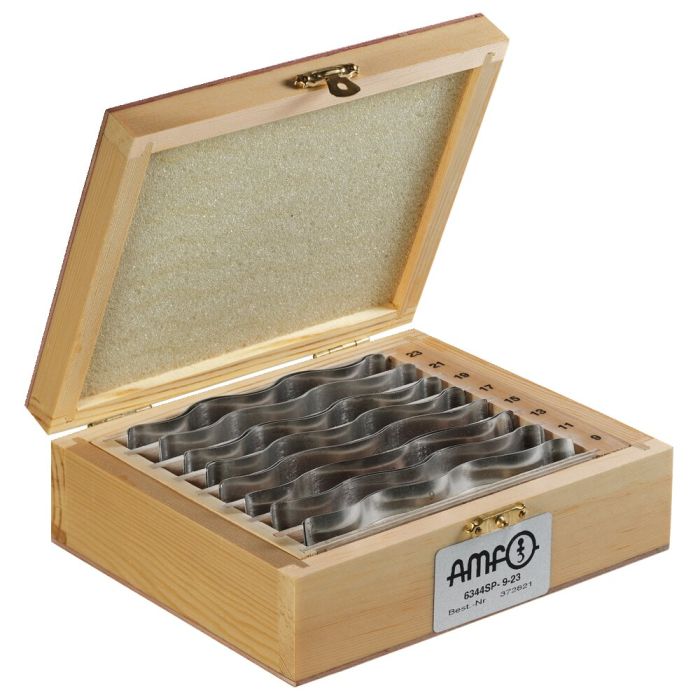

Parallel supports-set, corrugated
Quality Super-Precision, length 110, width 0,3 mm, height 9-23 mm
Order no.
372821
Design:
Size 9-23, 1 pair each (B x H):
0.3x9 / 0.3x11 / 0.3x13 / 0.3x15 / 0.3x17 / 0.3x19 / 0.3x21 / 0.3x23 mm.
Size 25-39, 1 pair each (B x H):
0.3x25 / 0.3x27 / 0.3x29 / 0.3x31 / 0.3x33 / 0.3x35 / 0.3x37 / 0.3x39 mm.
Application:
The corrugated parallel washers create a time-saving when clamping workpieces for grinding, milling, cutting, boring, etc.
Advantage:
- no swarf remains on the mounting surface
- parallelism of the clamped workpiece is not affected
- several flat or single thin workpieces can easily be clamped.
| Order no. | 372821 |
|---|---|
| Product type | Parallel supports |
| Quality level | 3 - Super-Precision |
| Length [mm] | 110 |
| Width [mm] | 0.3 |
| Special features | Set, Corrugated |
