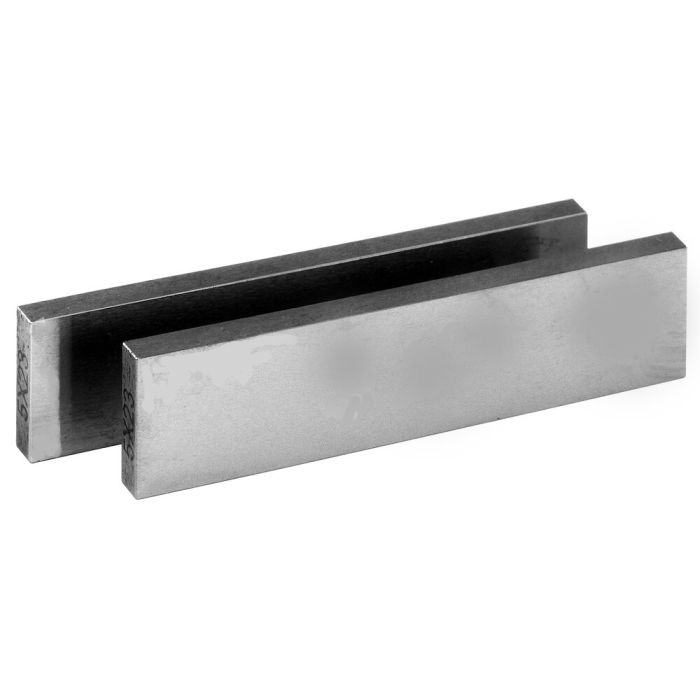

Parallel supports-pairs, super-precision, 100 mm long
Quality Super-Precision, length 100 mm, width 2 mm, height 5 mm
Order no.
370007
Application:
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
| Order no. | 370007 |
|---|
