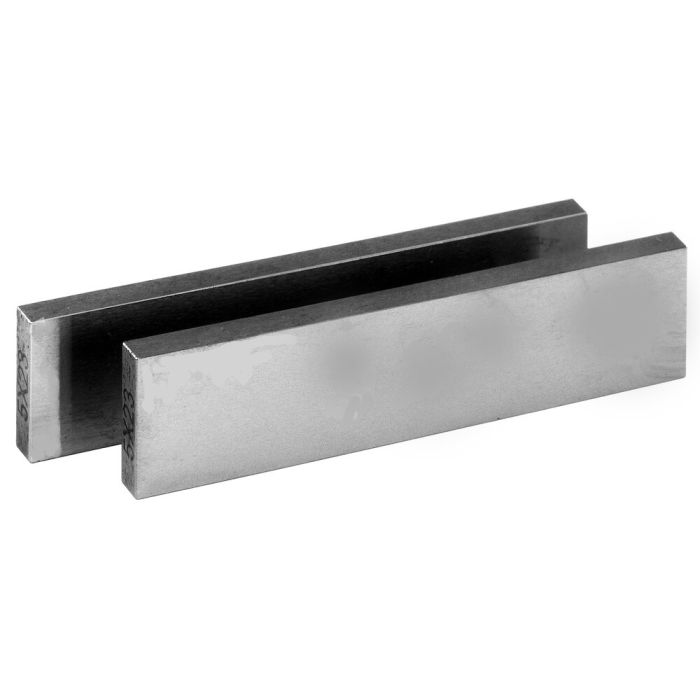

Parallel supports-pairs, super-precision, 100 mm long
Quality Super-Precision, length 100 mm, width 6 mm, height 19 mm
Order no.
370189
Application:
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
| Order no. | 370189 |
|---|---|
| Product type | Parallel supports |
| Quality level | 3 - Super-Precision |
| Length [mm] | 100 |
| Width [mm] | 6 |
| Height [mm] | 19 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
