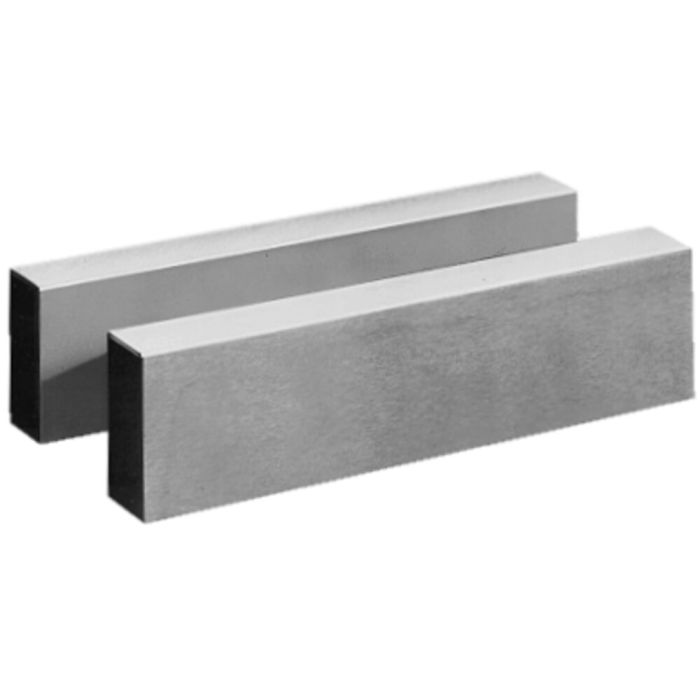

Parallel supports-pairs, super-precision
Quality Super-Precision, length 150 mm, width 10 mm, height 18 mm
Order no.
75499
Application:
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on the product.
| Order no. | 75499 |
|---|---|
| Product type | Parallel supports |
| Quality level | 3 - Super-Precision |
| Length [mm] | 150 |
| Width [mm] | 10 |
| Height [mm] | 18 |
