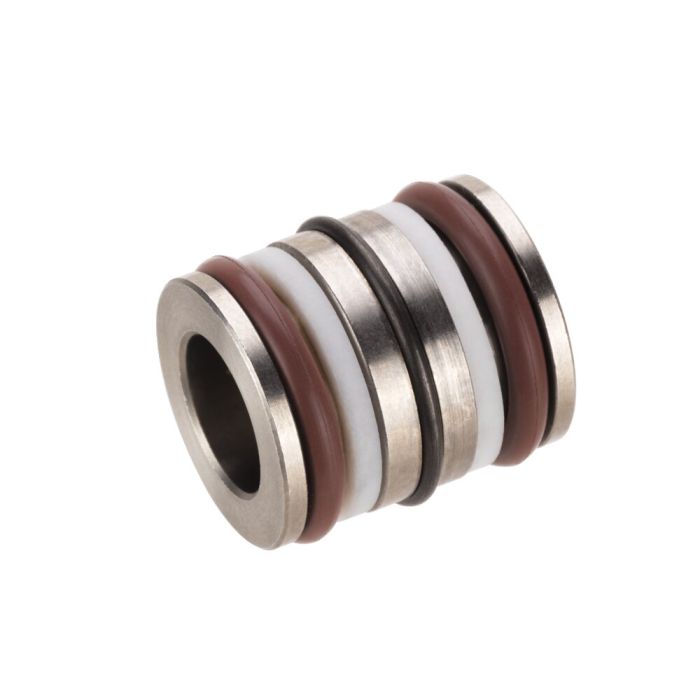

Plug connection
Max. operating pressure 500 bar, nominal bore 12
Order no.
554419
Design:
Housing made from stainless steel , seals made from FKM.
Application:
For connecting two components at a short distance without using fittings.
They are designed for pipeline and screwless pressure oil connection.
Note:
The axially effective hydraulic force must be absorbed from the outside by force-locking or form-fit.
The force must be determined using the formula f. separating force F [N] = Factor x p [bar] (e.g. at NW3: F= 5 x p).
On request:
Special sizes are available on request.
| Order no. | 554419 |
|---|---|
| Max. operating pressure [bar] | 500 |
| Type | Plug connection |
| Nominal bore | 12 |
