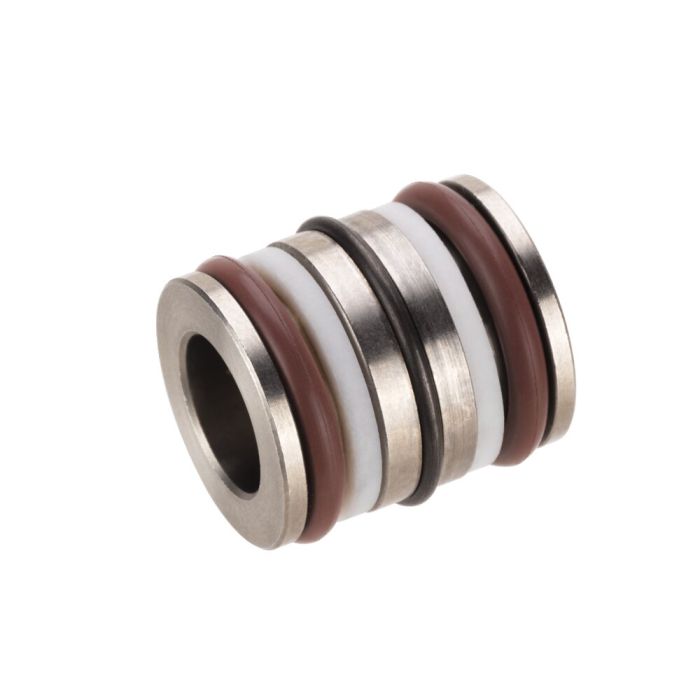

Plug connection

Max. operating pressure 500 bar, nominal bore 16

Order no.

554420

Order no.	Article no.	Nominal bore	Ambient temp. [°C]	Weight [g]
554415	6994S-03	3	150	4
554416	6994S-05	5	150	6
554417	6994S-08	8	150	13
554418	6994S-10	10	150	20
554419	6994S-12	12	150	25
554420	6994S-16	16	150	30

Order no.	dia. B	dia. D	L	C min.	Dia. D1 H7	ØE +0.2
554415	3	8	12	6	8	1,5
554416	5	10	14	7	10	1,5
554417	8	14	16	8	14	1,5
554418	10	16	20	10	16	2,4
554419	12	18	20	10	18	2,4
554420	16	22	22	11	22	3,2

Design:
Steel galvanized. With union nut and cutting ring.

Application:
Rotary couplings are used to supply hydraulic oil to systems which can be rotaded and swivelled.

Note:
Please observe max. operating pressure and max. rpm. Thread G1/4 is sealed by means of a sealing edge according to DIN 3852 Part 2, form B.
