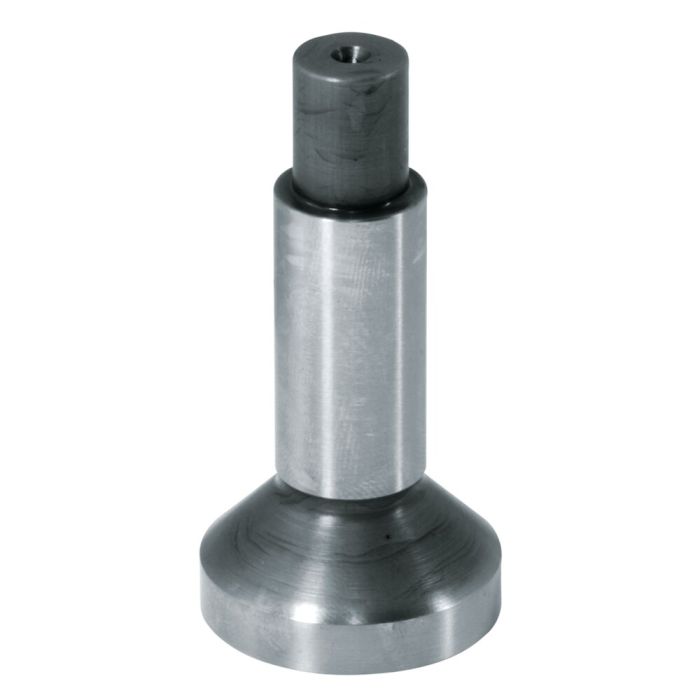

Positioning pull-stud
For surface-mounted modules size 5
Order no.
306241
Application:
The positioning nipple makes all of the surface-mounted modules easier to align. It can be clamped directly in the machine spindle, thus achieving the desired gauges when the machine is traversed.
| Order no. | 306241 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 5 |
