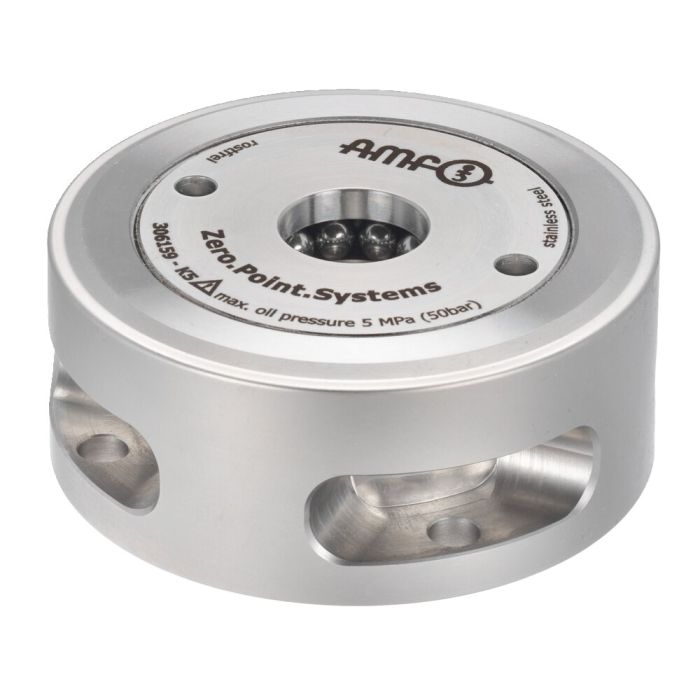

Surface-mounted clamping module
Hydraulic opening, size KH5
Order no.
306159
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The contact surface is the upper surface of the housing.
The clamping module has one connection: 1x hydr. opening (1).
* Please observe the installation instructions.
On request:
- Individual housing
| Order no. | 306159 |
|---|---|
| Product type | Surface-mounting clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 5 |
| Holding force [kN] | 13 |
| Pull-in/locking force [kN] | 5 |
