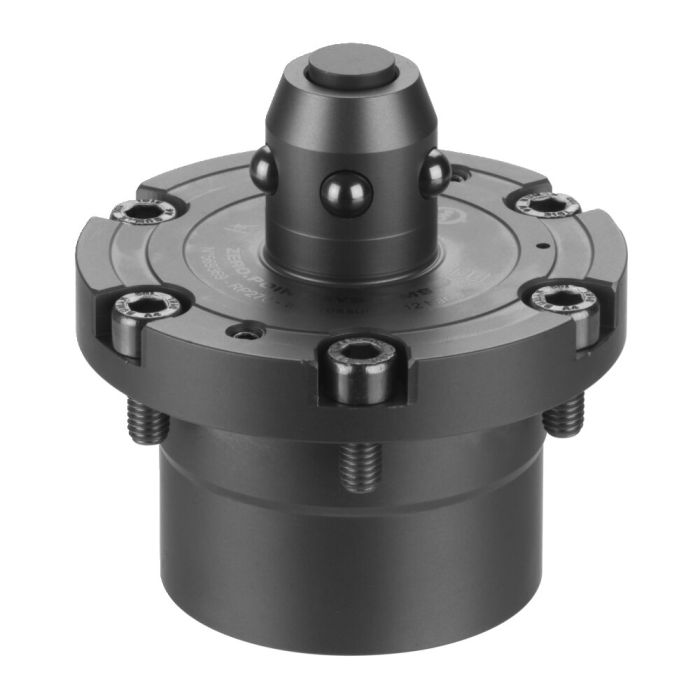

Installation clamping module
Design:
Contact surface with integrated blow out and support control.
Application:
Pneumatic zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining. Ideally suited for applications in the transfer automation range, since no interference contour is present underneath the interchangeable pallet.
Note:
The zero-point clamping system is opened (1) pneumatically and locked mechanically by spring force. The pneumatic supply lines can be connected using the M3 thread on the underside of the clamping module. Moreover, the air can be supplied using the O-rings supplied as standard. Subsequent uncoupling of the pressure line is possible at any time (zero-point clamping system is clamped at normal pressure). The connection (7) can optionally be used as a pneum. blow-out and support control. Venting is performed via a connection (5).
* Please observe the installation instructions.
On request:
- Installation drawing
| Order no. | 569369 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 270 |
| Holding force [kN] | 6 |
| Pull-in/locking force [kN] | 0.3 |
| Automation query | Support control |
