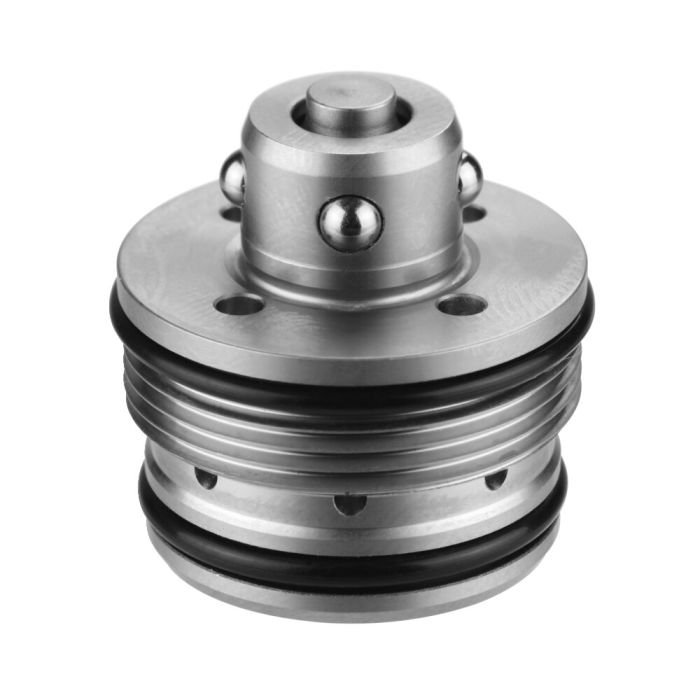

Clamping module, screw-in version, short design
Application:
Pneumatic zero point clamping system for set-up-time-optimised clamping during non-cutting machining.
Ideally suited for applications in the transfer automation range because no interference contour is present underneath the interchangeable pallet.
Note:
The zero-point clamping system is opened (1) pneumatically and locked mechanically by spring force. Subsequent uncoupling of the pressure line is possible at any time (zero-point clamping system is clamped at normal pressure). Venting is performed via a connection (5).
The base plate serves as the contact surface, into which the zero-point clamping system is screwed.
A suitable mounting tool is available under the order no. 559439.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 567134 |
|---|---|
| Product type | Einbau-Spannmodul |
| Operating mode | Pneumatic |
| Size clamping module | 250/251 |
| Holding force [kN] | 1 |
| Pull-in/locking force [kN] | 0.1 |
