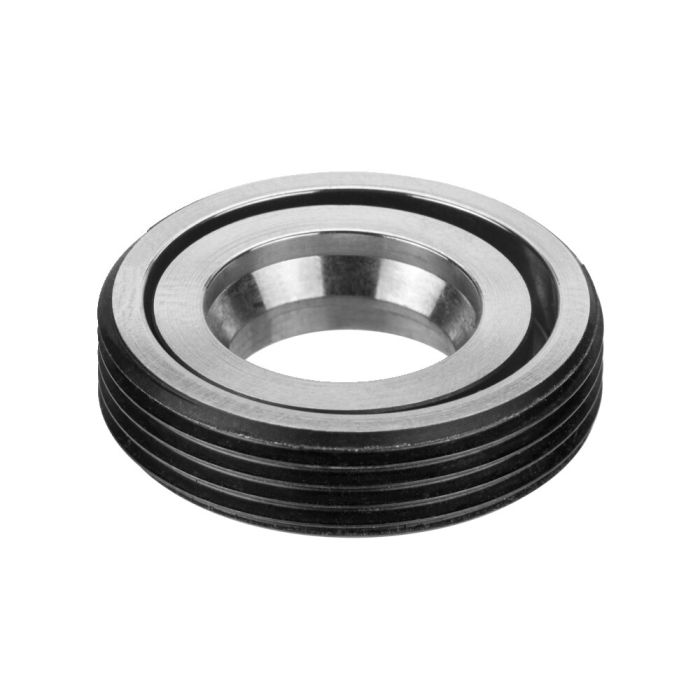

Counterbalance clamping sleeve
Application:
The compensation pull-stud is supported by bearings so that it is radially mobile and is used when large distance tolerances between the clamping sleeves have to be compensated. The compensating clamp sleeve has an external thread and can, for example, be screwed directly into fixtures or workpieces. Order no. 559093: Suitable for all modules of sizes 250 and 251
Order no. 559371: Suitable for all modules of size 260
Order no. 569373: Suitable for all modules of size 270
Note:
The clamping sleeve only has a holding function and does not absorb any lateral load.
You can find matching installation tools under article number 6214ZMW.
On request:
- Installation diagrams
| Order no. | 559093 |
|---|---|
| Product type | Clamping sleeve |
| Operating mode | Pneumatic, Mechanical |
| Size clamping module | 250/251 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Clamping module with locking function, mechanical, screw-in version Nr. 567133 Mechanical opening, size RM251
- Zero-point clamping sleeve Nr. 567135 Suitable for pneumatic clamping module 6215RP-250 and 251 and mechanical clamping modules 6214RM-250 and 251
