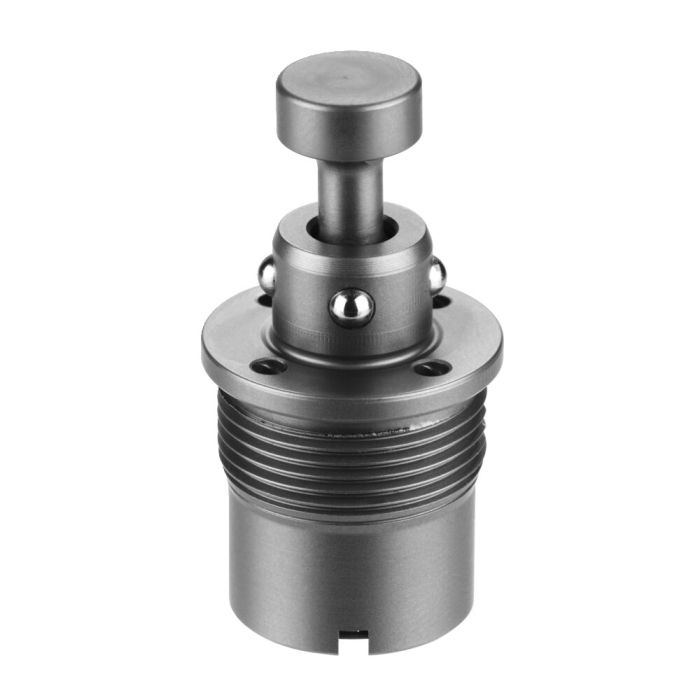

Clamping module with locking function, mechanical, screw-in version

Application:
Mechanical zero point clamping system with detent function for set-up-time-optimised clamping during non-cutting machining. Very suitable for clamping smaller fixtures, e.g. in assembly.

Note:
The mechanical zero-point clamping system is opened by pressing the actuator knob with hand force and it remains in this position. Locking involves pressing the actuator knob again mechanically using spring force. A tool is not required for this. The base plate serves as the contact surface, into which the clamping module is screwed. An extended actuating pin with a height of 20 mm is available under the order no. 561391. A suitable mounting tool is available under the order no. 559439.

* Please observe the installation instructions.

On request:
- Installation diagrams
