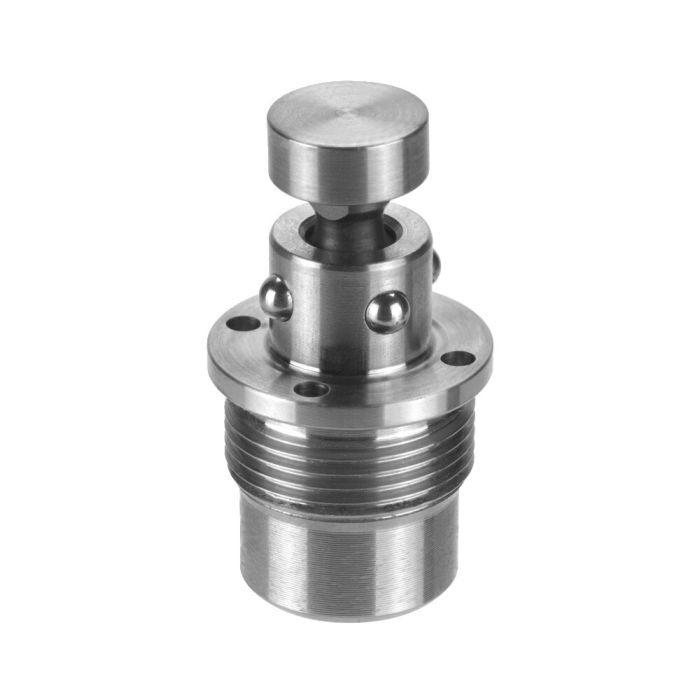

Clamping module, mechanical, screw-in version
Application:
Mechanical zero point clamping system for set-up-time-optimised clamping during non-cutting machining.
Note:
The mechanical zero-point clamping system is opened by pressing the actuator knob with hand force. Interlock is achieved mechanically via spring force. A tool is not required for this.
The base plate serves as the contact surface, into which the clamping module is screwed.
An extended actuating pin with a height of 20 mm is available under the order no. 561391.
A suitable mounting tool is available under the order no. 559439.
Order numbers of the clamping sleeves: 559092 and 559093.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 559090 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Mechanical |
| Size clamping module | 250/251 |
| Holding force [kN] | 1 |
| Pull-in/locking force [kN] | 0.1 |
