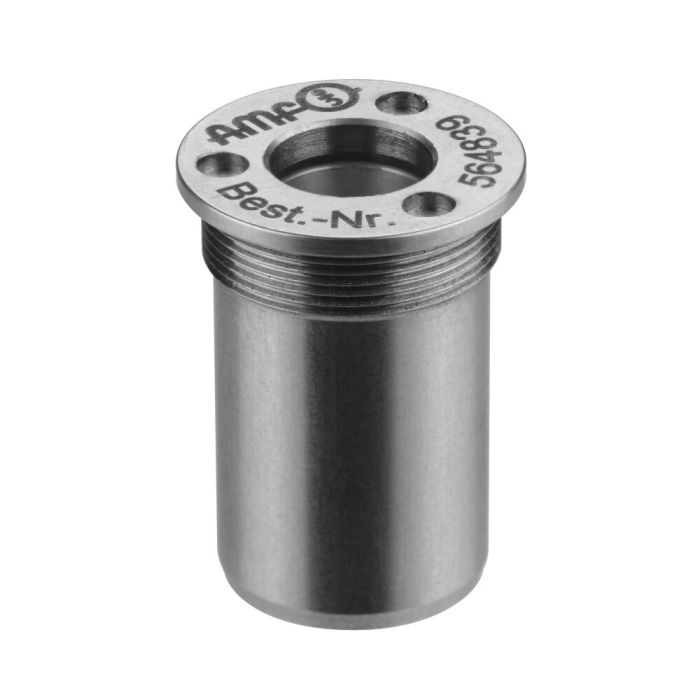

Installation clamping module, screw-in version
Pneumatic opening, size SP140
Order no.
564839
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and locked mechanically through spring force. Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).
The clamping module has one connection:
1x pneum. Open (1).
For simple installation, we recommend using installation tool 6203ZMW.
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 564839 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 140/141 |
| Holding force [kN] | 0.5 |
| Pull-in/locking force [kN] | 0.07 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hose, pneumatic Nr. 430140 For the pneumatic connection of extension clamping modules or clamping stations
Similar products
- Installation clamping module with sensor query for opening and interlock Nr. 559089 Pneumatic opening
- Clamping module with locking function, mechanical, screw-in version Nr. 567133 Mechanical opening, size RM251
