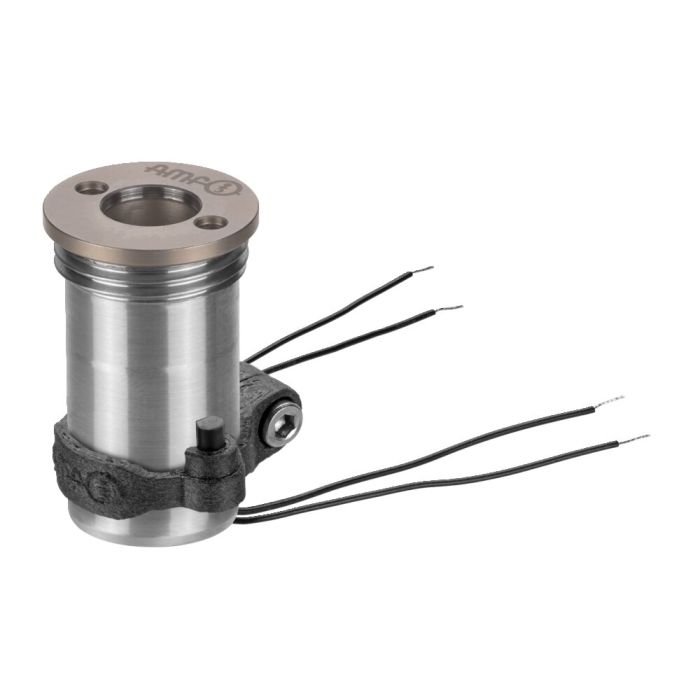

Installation clamping module with sensor query for opening and interlock
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and locked mechanically through spring force. Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).
The clamping module has one connection:
1 = pneum. opening
The installation clamping module with sensor query contains the fastening kit order no. 559403. It has two reed sensors with connection cables (Ø 0.75 mm, cable length 100 mm) for status check opened / locked and a fastening clamp.
For simple installation of the installation clamping module, we recommend the AMF pin wrench, order no. 50914.
* Please observe the installation instructions.
| Order no. | 559089 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 150/151 |
| Holding force [kN] | 6 |
| Pull-in/locking force [kN] | 0.235 |
| Automation query | Locking control, Opening control |
