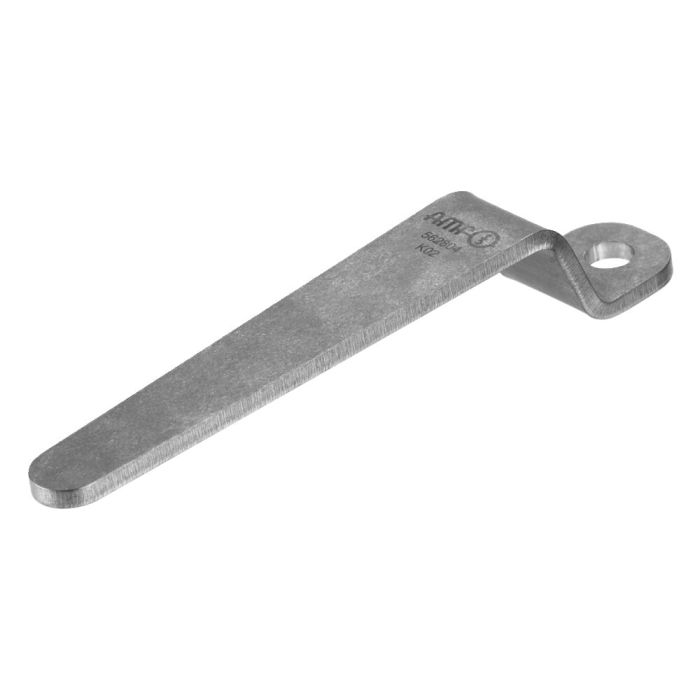

Adjustment tool for timing pull-stud size 150
Suitable for order no. 427328
Order no.
562804
Application:
The tool facilitates the alignment of the K02 timing pull-stud.
| Order no. | 562804 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Pneumatic |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 150 Nr. 427328 For pneumatic clamping module no. 6203SP-150 and 6109SP-150, timing pull-stud
- Installation clamping module with sensor query for opening and interlock Nr. 559089 Pneumatic opening
