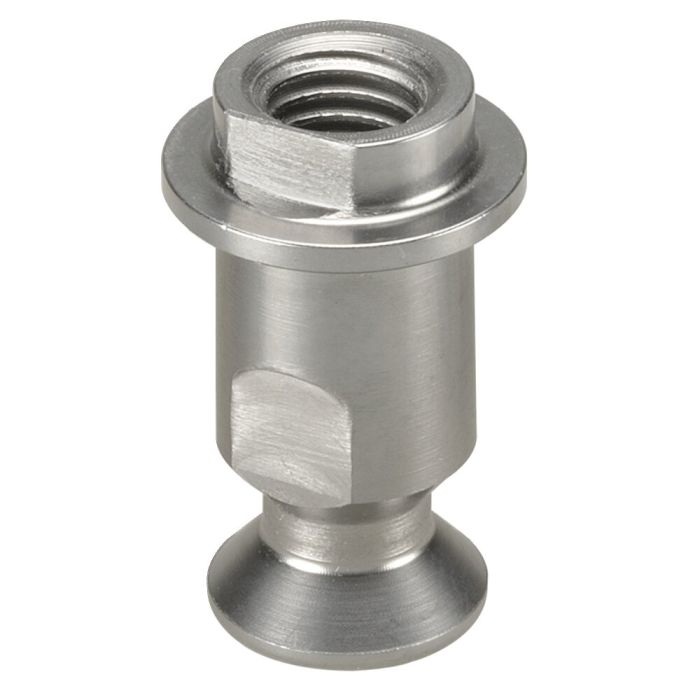

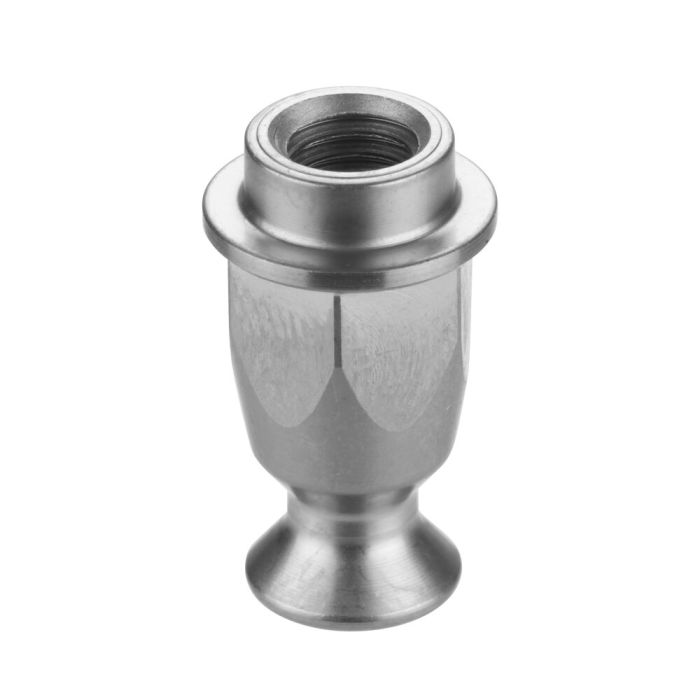

Pull-stud size 150
For pneumatic clamping module no. 6203SP-150 and 6109SP-150, timing pull-stud
Order no.
427328
Design:
Order no. 427302: zero-point pull-stud, Order no. 427328: timing pull-stud,
Order no. 427344: undersize pull-stud.
Zero point, timing and undersize pull-stud incl. threaded stud ISO 4026 M5x20-10.9 (galvanised).
Note:
A suitable tool for aligning the slit pull-stud is available under the order no. 562804.
| Order no. | 427328 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Pneumatic |
| Size clamping module | 150/151 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Installation clamping module with sensor query for opening and interlock Nr. 559089 Pneumatic opening
Similar products
- Pull-stud size 150 Nr. 427302 For pneumatic clamping module no. 6203SP-150 and 6109SP-150, zero point pull-stud
- Pull-stud size 150 Nr. 427344 For pneumatic clamping module no. 6203SP-150 and 6109SP-150, undersize pull-stud
