4-point clamping station
Pneumatic unlocking
Order no.
533034
Design:

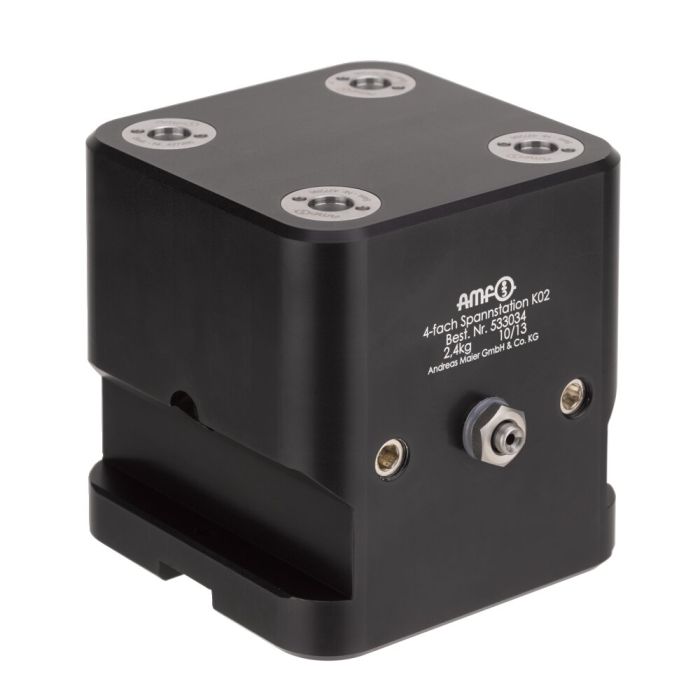

Pneumatic 4-point clamping station with air gun valve for quick opening and closing via air gun.
The clamping station has two clamping slots on the side for fastening to the machine table. In addition, positioning slots for aligning on the machine table are made on the underside. The holder for a pull-stud is also provided in the 150 version.
Note:
* Please observe the installation instructions.
| Order no. | 533034 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 150/151 |
| Holding force [kN] | 6 |
| Pull-in/locking force [kN] | 0.235 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 150 Nr. 427302 For pneumatic clamping module no. 6203SP-150 and 6109SP-150, zero point pull-stud
Similar products
- Installation clamping module with sensor query for opening and interlock Nr. 559089 Pneumatic opening
- Clamping module with locking function, mechanical, screw-in version Nr. 567133 Mechanical opening, size RM251
