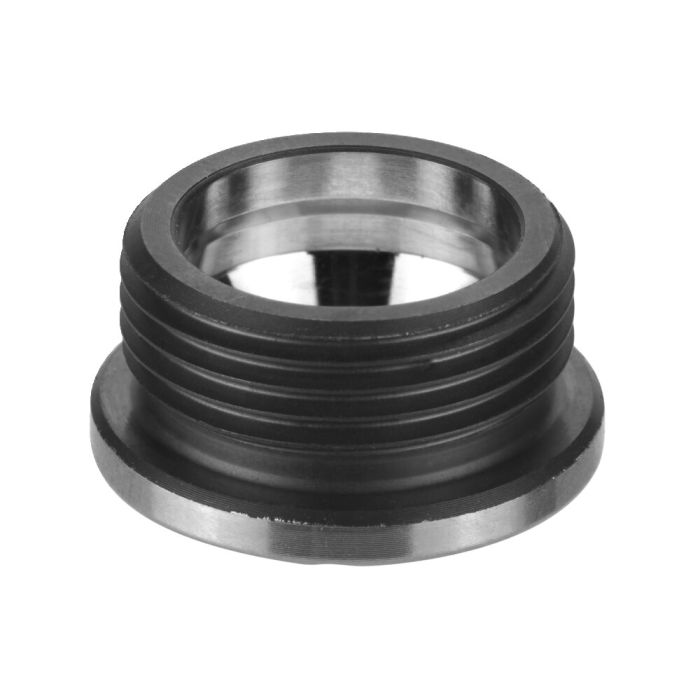

Zero-point clamping sleeve
Suitable for all modules of size 250 and 251
Order no.
559092
Application:
The clamping sleeve has an external thread and can, for example, be screwed directly into fixtures or workpieces.
Order no. 559092: Suitable for all modules of sizes 250 and 251
Order no. 559370: Suitable for all modules of size 260
Order no. 569372: Suitable for all modules of size 270
Note:
You can find matching installation tools under article number 6214ZMW.
On request:
- Installation diagrams
| Order no. | 559092 |
|---|---|
| Product type | Clamping sleeve |
| Operating mode | Mechanical, Pneumatic |
| Size clamping module | 250/251 |
