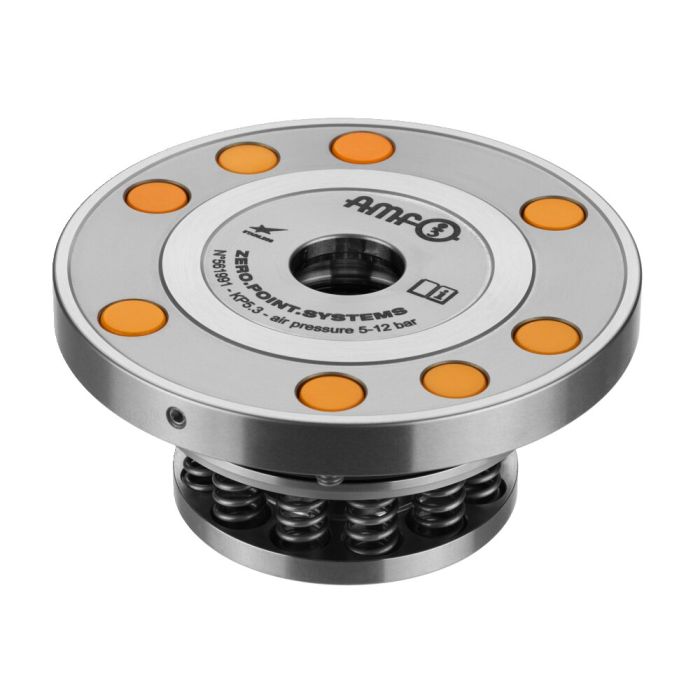

Installation clamping module for automation solutions
Design:
Centric blow-out, support control and opening and locking control.
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
Locking control: Dynamic pressure with locked clamping module, flow-through with opened clamping module.
Opening control: Dynamic pressure with opened clamping module, flow-through with locked clamping module. Support control via the blow-out function: Dynamic pressure with supported interchangeable pallet.
The installation clamping module is opened pneumatically and locked mechanically by spring force. Subsequent uncoupling of the pressure line is possible at any time (module is clamped at normal pressure).
The clamping module has five connections:
1 = pneum. Opening
3 = pneum. Blow-out
4 = pneum. Opening control inlet
5 = venting
8 = pneum. Locking control inlet
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 561991 |
|---|---|
| Product type | Einbau-Spannmodul |
| Operating mode | Pneumatic |
| Size clamping module | 5 |
| Holding force [kN] | 13 |
| Pull-in/locking force [kN] | 1.5 |
| Automation query | Verriergelungskontrolle, Opening control, Support control |
