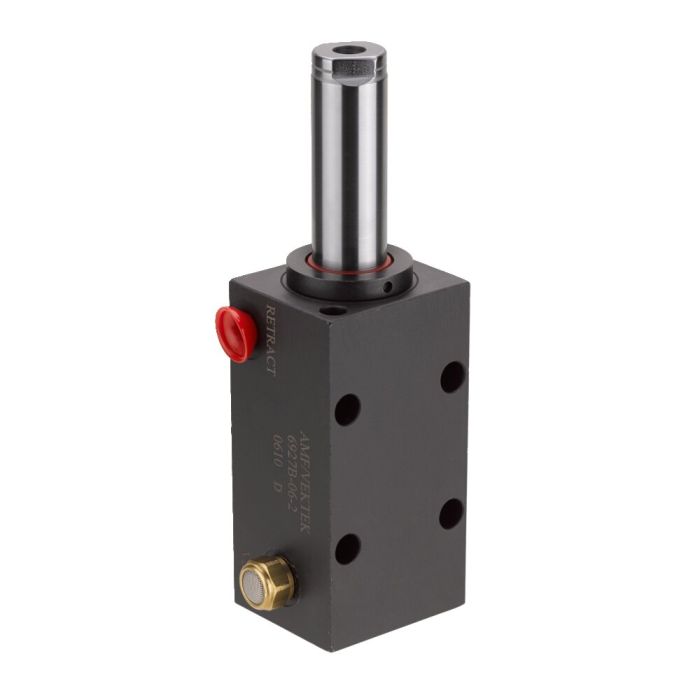

Pull Cylinder, block type
Design:
Cylinder barrel from steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamping arm positioning. O-ring for flange seal. Wiper at piston rod. Return spring from stainless steel. Oil supply via threaded connection or oil channel in the fixture body.
Application:
Universal Push-Pull Cylinder for various applications.
Features:
Each cylinder size is available for single or double-acting operation. Various thrust pieces can be attached in the tapped piston rod ends. Clamps can be attached, as with the swing clamps.
Note:
The piston is guided, therefore, the max. permissable oil flow rate Q max. must be observed in order to protect the mechanism. No force must be introduced at the piston when mounting accessory. For single acting cylinders there is risk of sucking in coolant through the breather port. In such cases the breather port has to be piped to a clean protected area. The system has to be completely vented during installation.
| Order no. | 68106 |
|---|---|
| Max. clamping force [kN] | 17.5 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Single acting |
| Stroke [mm] | 25.5 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Quick Disconnect Coupler Nr. 69021 Sleeve with external thread, max. operating pressure 1000 bar, nominal size 2,5
- High Pressure Hose with steel-wire interlace Nr. 68551 For thread connection, max. operating pressure 500 bar, length 300 mm
