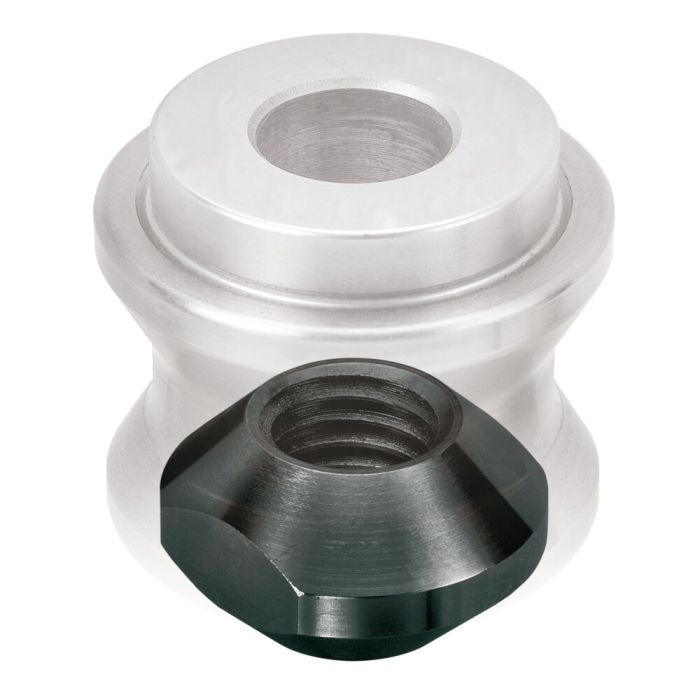

Pull-stud nut
Suitable for pull-stud no. 6370ZN, size 20
Order no.
430009
Application:
Pull-stud nut for fastening the pull-stud.
Note:
By gluing the pull-stud nut in the pull-stud with medium-strength adhesive, the nut is kept from turning when loosening the cylinder screw.
1 = Pull-stud nut
2 = Pull-stud
3 = Cylinder screw
| Order no. | 430009 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 43 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 with colour coding for M12 engagement screw Nr. 430322 For clamping modules size 20, zero point pull-stud "Gold"
- Pull-stud size 20 for M12 engagement screw with reduced fitting collar Nr. 562761 For clamping modules size 20, zero point pull-stud
