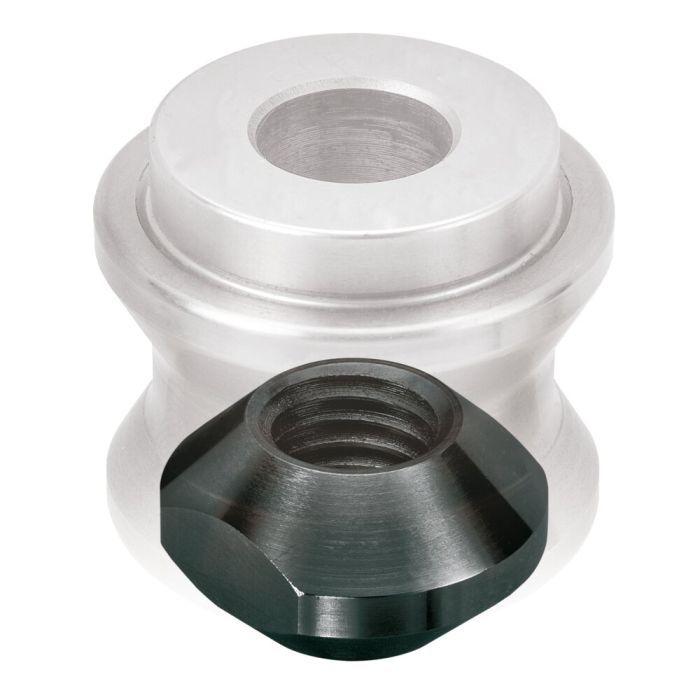

Pull-stud nut
Suitable for pull-stud no. 6370ZN, size 10
Order no.
429985
Application:
Pull-stud nut for fastening the pull-stud.
Note:
By gluing the pull-stud nut in the pull-stud with medium-strength adhesive, the nut is kept from turning when loosening the cylinder screw.
1 = Pull-stud nut
2 = Pull-stud
3 = Cylinder screw
| Order no. | 429985 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 17 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 10 for M8 engagement screw Nr. 303610 For clamping modules size 10, zero point pull-stud
- Pull-stud size 10 with colour coding for M8 engagement screw Nr. 430280 For clamping modules size 10, zero point pull-stud "Gold"
- Pull-stud size 10 for M8 engagement screw with reduced fitting collar Nr. 562748 For clamping modules size 10, zero point pull-stud
