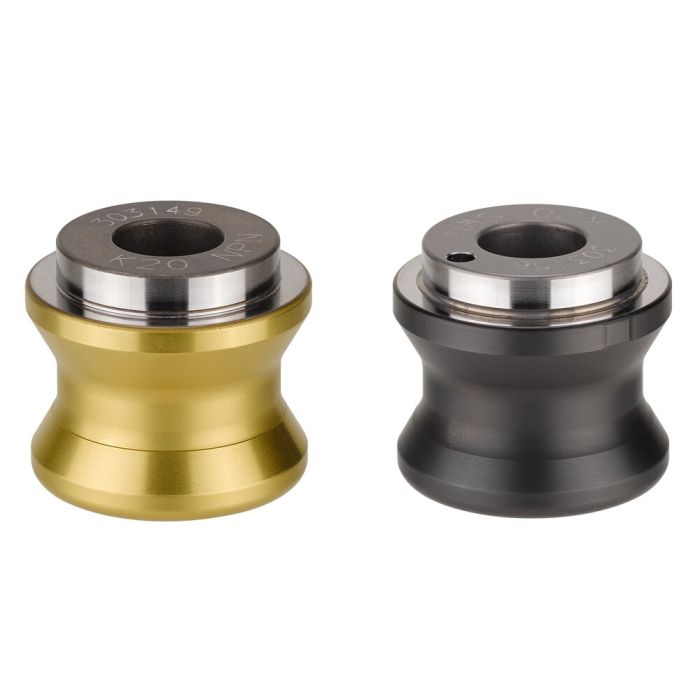

Pull-stud size 10 with colour coding for M8 engagement screw
For clamping modules size 10, zero point pull-stud "Gold"
Order no.
430280
Design:
Extremely wear-resistant surface coating. Order no. 430280: zero point pull-stud "Gold", order no. 430306: timing pull-stud "Black".
Application:
For simple, visual differentiation of the various pull-studs.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
| Order no. | 430280 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
