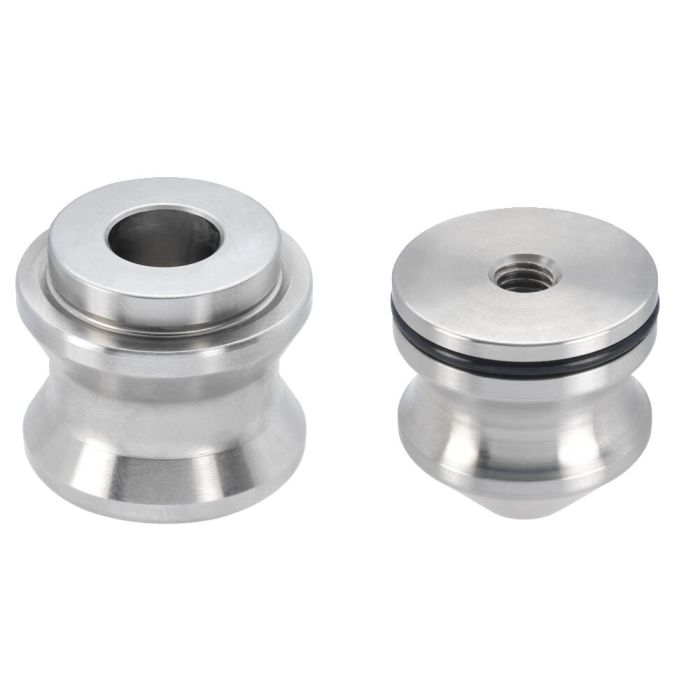

Pull-stud size 10 for M8 engagement screw with reduced fitting collar
For clamping modules size 10, zero point pull-stud
Order no.
562748
Design:
Order no. 562748: zero point pull-stud, order no. 562750: timing pull-stud,
order no. 562751: undersize pull-stud, order no. 304535: protection pull-stud
Application:
For clamping in a fitting hole with a reduced diameter e.g. before heat treatment of a workpiece. After the boring out the hole, the respective standard pull-stud can be used.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
On request:
Protection pull-stud made of plastic.
| Order no. | 562748 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
