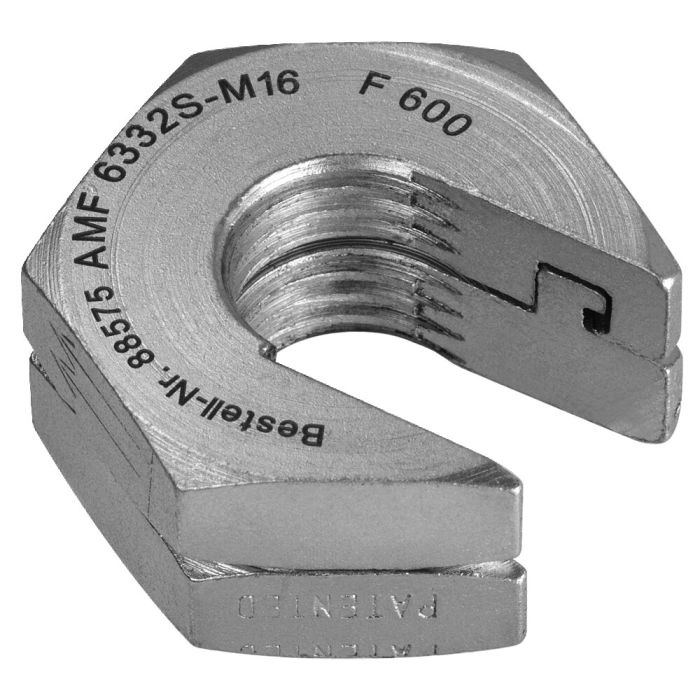

Quick-action clamping nut without collar
Application:
Separable bolt nuts for quick-mounting applications. It can be simply pushed over long or damaged studding. Nut halves are undetachable through the separation block, even in the swivelled out condition.
Note:
After they are pushed together, a 1/4 to 1/2 turn suffices for locking.
Advantage:
- Time saved with long and damaged studding
- Overcomes studding that is corroded, damaged at the thread and even bent up to approx. 20°
- Compact design., extremely easy to handle
- Fast installation and disassembly using standard tools
- Retention as solid nuts of the same size with strength class 10.
On request:
Other materials and special sizes on request.
| Order no. | 88583 |
|---|---|
| Product type | Quick-action clamping nuts |
| Thread [M] | 20 |
| Strength class | 6 |
