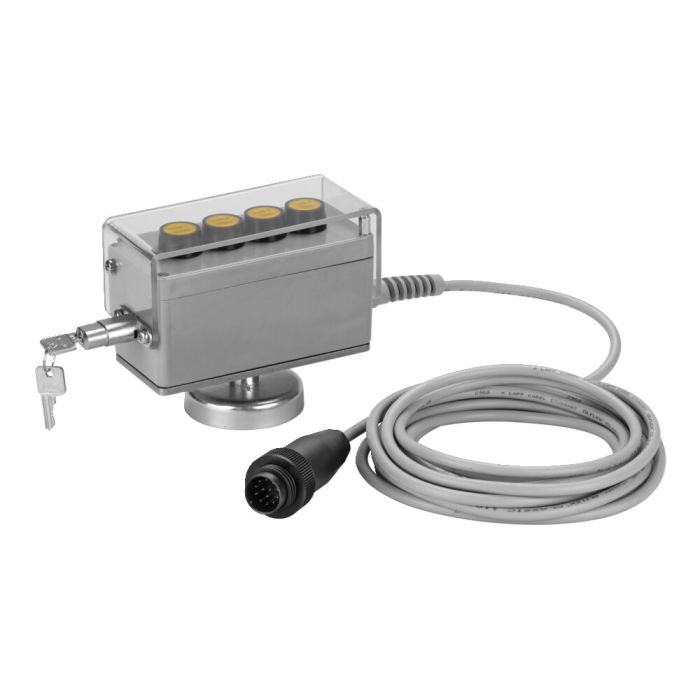

Remote Control Switch with magnetic base and safety cover
For 4 clamping circuits, for pump unit No. 6906P-64319, order no. 326702
Order no.
60392
Design:
Compact polyester housing. Illuminated push-buttons with screening for clamping circuits 1-4 and insert labels. Push buttons for clamping (green) and releasing (red), without screening for clamping circuit 5. 5 m cable with 13-pin coupling connector, protection class IP 65.
Application:
For pump unit No. 6906P-65319, Order no. 326728.
Note:
Clamping circuits 1 to 4 are for operating hydraulic clamping elements, circuit 5 is for raising the hydraulic ball-roller strip. The controls are so arranged that unintentional operation of one of the clamping circuits automatically retracts the hydraulic ball-rollers.
| Order no. | 60392 |
|---|---|
| Product type | Remote control switches |
