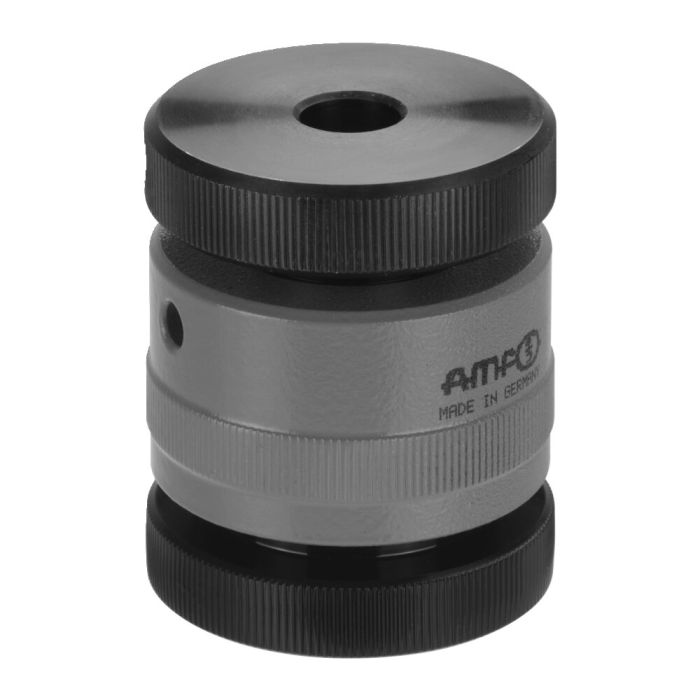

Screw jack with flat support and magnetic base
Size 110, centring hole Ø12 mm / M10, height 80-110 mm, ⌀ 50 mm
Order no.
73403
Note:
AMF screw jacks with magnetic base are designed for horizontal and vertical application. The permanent magnet allows permanent and exact positioning of the workpiece in a vertical position. The screw jacks are suitable for clamps of approx. 14-22 mm. When using clamps DIN 6415B, 6315C and 6315GN from 26 mm slot width, we recommend, by way of precaution, fixing cap no. 6443.
Suitable attachments: No. 6440, 6441, 6442, 6443 and 6445.
Suitable support for dismantled magnetic base: No. 6442G.
Do not adjust screw jack under load!
Advantage:
Improved rust protection, burnished spindle
| Order no. | 73403 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 80 |
| Max. height [mm] | 110 |
| Max. support force [kN] | 100 |
| Special features | With magnetic base |
