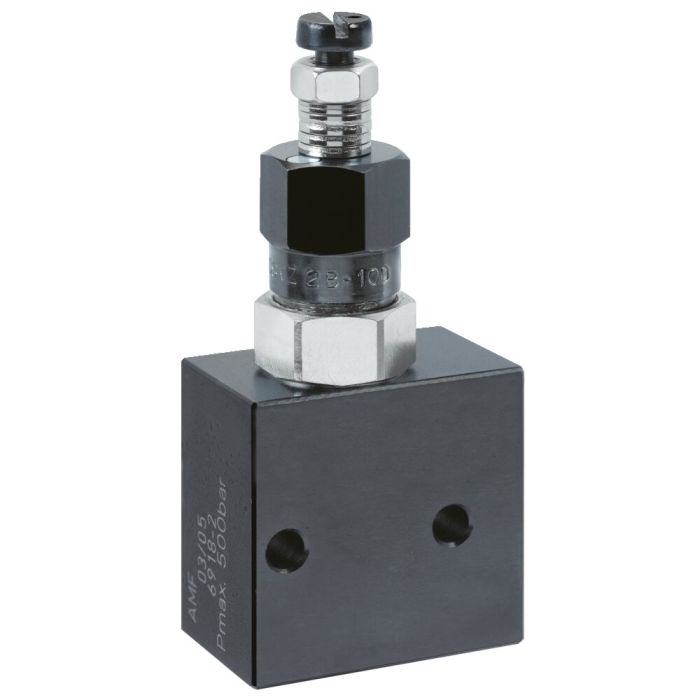

Sequence Valve
Design:
Steel body, nitrided. Sealing nut galvanized. All functional components hardened and ground. Oil supply via threaded port.
Application:
The pressure sequence valve is used in cases where another consumer is connected to the circuit after a set pressure has been reached. If several sequence valves are employed in the circuit, please note that the pressure in this circuit always adjusts to the last pressure stage.
For this type, the switching pressure remains largely constant, regardless of the outflow pressure on the outlet side (cylinder side).
Note:
For disassembly of the pressure valve please release first SW (AF) 24, then SW 22. For assembly please use reverse sequence and observe max. seating torque. The pressure difference between P and A depends on the preload of the adjustment spring.
| Order no. | 60517 |
|---|---|
| Product type | Sequence valve |
| Max. operating pressure [bar] | 500 |
| Oil port | Thread |
| Volume flow [l/min] | 20 |
