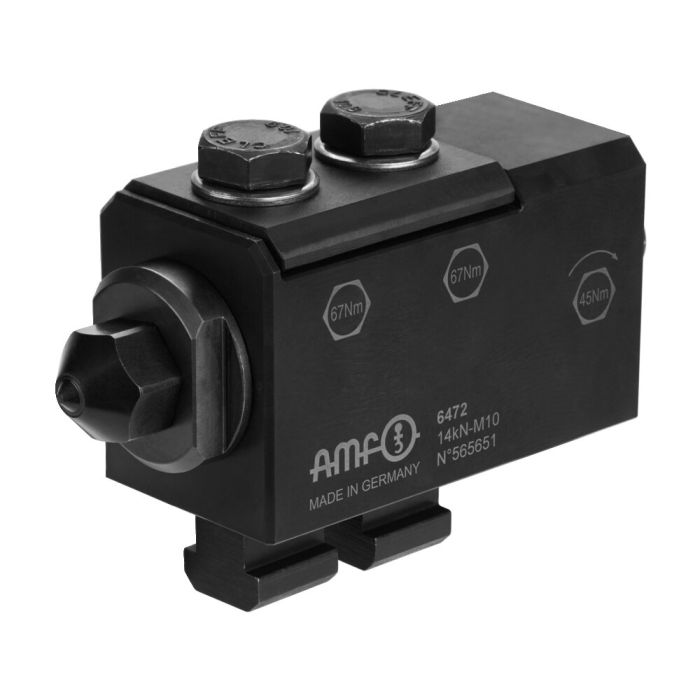

Side clamp with clamping point
Application:
The mechanical side clamp without pull-down effect can be used as a clamping element and as a stop element.
When used in conjunction with the base plate with slot 6498FT, the side clamp can also be placed across the table slot.
Note:
The clamping force is achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
If larger T-nuts are used, pay attention to the screw length! Use of the flat sliding block no. 6322A enables the side clamp to be accurately positioned in the machine table groove.
Fastening takes place with a cylinder screw ISO 4762 M6 x 10.
Corresponding set screws:
7110DKX-12xM12 Set screw with ball, smooth
7110DFX-12xM12 Set screw with ball, striated
Advantage:
- Compact design
- Can be used horizontally and vertically
- Changeable set screw
| Order no. | 565652 |
|---|---|
| Product type | Edge clamps |
| Slot [mm] | 18 |
