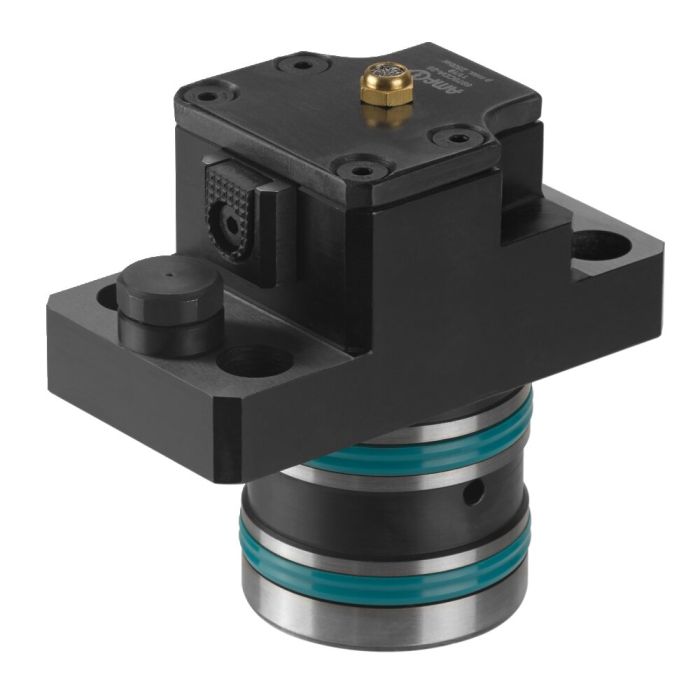

Side clamping element with support
Design:
Housing made of steel, burnished. Tension slide hardened. Alignment by cylinder pin. Integrated support control and grooved clamping jaw. Oil supply via oil channel in fixture body.
Application:
For clamping workpieces in a linear direction. Compact design thanks to integrated support and support control. A pneumatic support control is included as standard, which can be connected if required. The support height can be adjusted to the workpiece height by means of shims.
Features:
High flexibility through individually designed and exchangeable clamping jaws.
Note:
The installation hole must be free of burrs. Seals and housings must be greased during installation. Avoid chips from gathering via oil channels.
| Order no. | 562197 |
|---|---|
| Product type | Side clamping elements |
| Max. clamping force [kN] | 27.5 |
| Max. operating pressure [bar] | 250 |
| Type of actuation | Double acting |
| Stroke [mm] | 3 |
