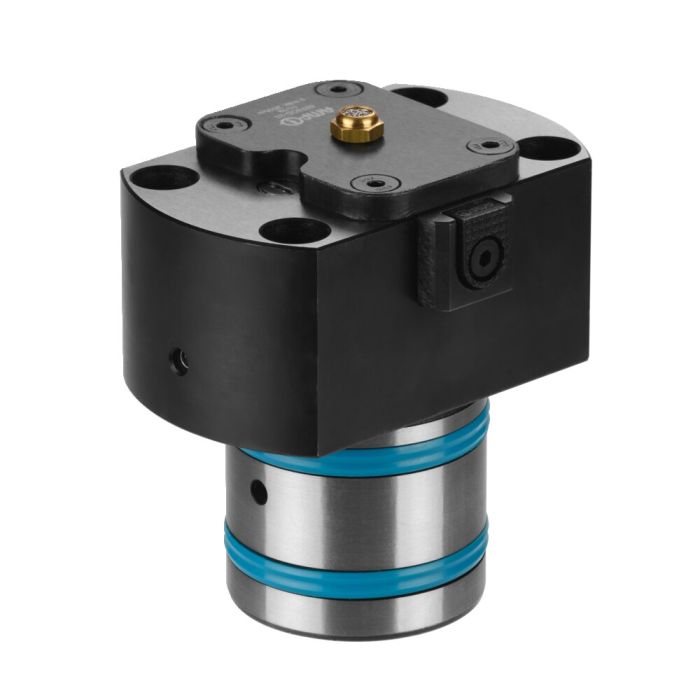

Side clamping element without support
Max. operating pressure 250 bar, max. clamping force 27,5 kN, stroke 3 mm, double acting
Order no.
562198
Design:
Housing made of steel, burnished. Tension slide hardened. Integrated flow rate restrictor, grooved clamping jaw. Oil supply via oil channel in fixture body.
Application:
For clamping workpieces in a linear direction. Compact design. The workpiece can be clamped sensitively thanks to the adjustable flow rate restrictor.
Features:
High flexibility through individually designed and exchangeable clamping jaws.
Note:
The installation hole must be free of burrs. Seals and housings must be greased during installation. Avoid chips from gathering via oil channels.
| Order no. | 562198 |
|---|---|
| Product type | Side clamping elements |
| Max. clamping force [kN] | 27.5 |
| Max. operating pressure [bar] | 250 |
| Type of actuation | Double acting |
| Stroke [mm] | 3 |
