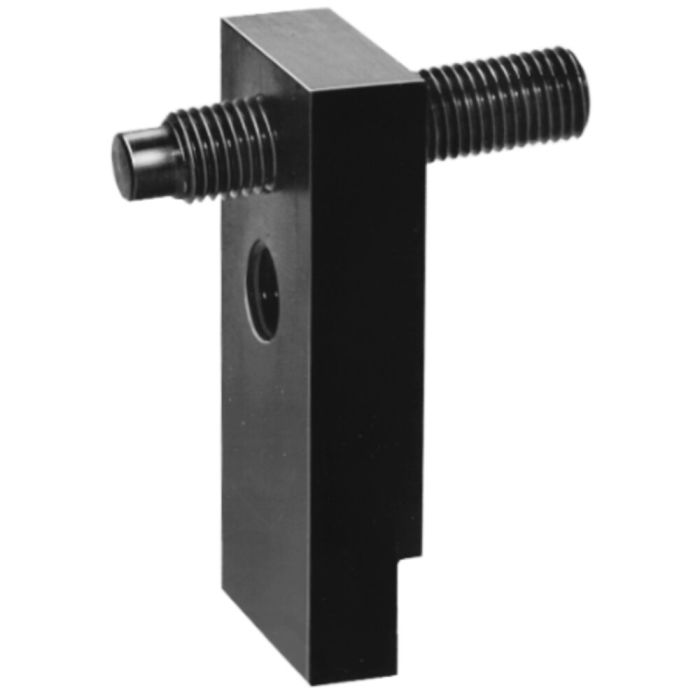

Side stop
Slot 28 mm, length 100 mm, width 32 mm, height 150 mm
Order no.
75911
Application:
The stop is used for safe positioning of long and heavy workpieces on slotted machine tables. It is inserted into the slot - at an inclined position due to its undersize and locks the workpiece against the parallel stop, e.g. no. 6351.
| Order no. | 75911 |
|---|---|
| Product type | Stops |
| Slot [mm] | 28 |
| Length [mm] | 100 |
| Width [mm] | 32 |
| Height [mm] | 150 |
