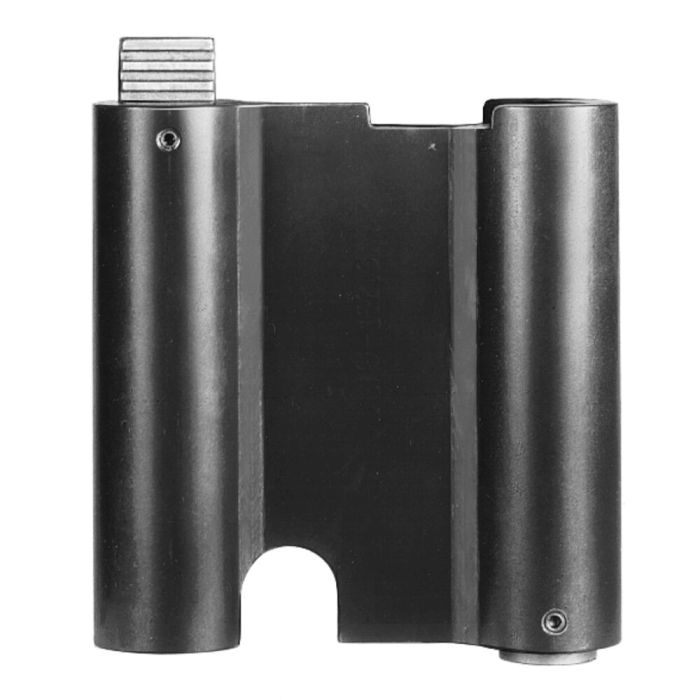

Spacer element

Height 120 mm (Type 30)

Order no.

76745

Order no.	Article no.	A1 x B1 x C1	dia. D	H	I	L	Weight [g]
76687	7100Z-20x1	40 x 45 x 150	30	40	22,5	105	900
76695	7100Z-30x1	60 x 60 x 270	40	60	30	210	2700
76737	7100Z-20x2	80 x 45 x 150	30	80	22,5	105	1550
76745	7100Z-30x2	120 x 60 x 270	40	120	30	210	4235
76786	7100Z-20x3	160 x 45 x 150	30	160	22,5	105	2790
76794	7100Z-30x3	240 x 60 x 270	40	240	30	210	8450
76836	7100Z-20x4	280 x 45 x 150	30	280	22,5	105	4400
76844	7100Z-30x4	420 x 60 x 270	40	420	30	210	9590
76885	7100Z-20x5	500 x 45 x 150	30	500	22,5	105	6430
76893	7100Z-30x5	1000 x 60 x 270	40	1000	30	210	19200
