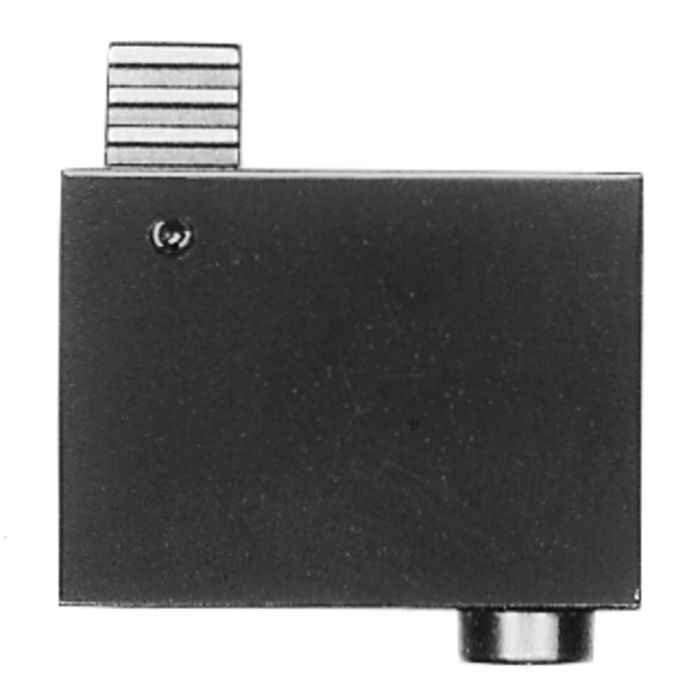

Spacer element

Height 30 mm (Type 16)

Order no.

77677

Order no.	Article no.	A x B x C	dia. D	H	I	L	Weight [g]
77347	7110Z-12-1	25x25x65	16	25	12,5	40	240
77354	7110Z-12-2	50x25x65	16	50	12,5	40	550
77362	7110Z-12-3	100x25x65	16	100	12,5	40	1180
77602	7110Z-20-1	40x40x120	30	40	20	80	1300
77610	7110Z-20-2	80x40x120	30	80	20	80	2400
77628	7110Z-20-3	160x40x120	30	160	20	80	5000
77636	7110Z-20-4	280x40x120	30	280	20	80	8800
77677	7110Z-16-1	30x30x80	22	30	14	50	450
77685	7110Z-16-2	60x30x80	22	60	14	50	1000
77693	7110Z-16-3	120x30x80	22	120	14	50	2100
88971	7110Z-16-4	240x30x80	22	240	14	50	4100
