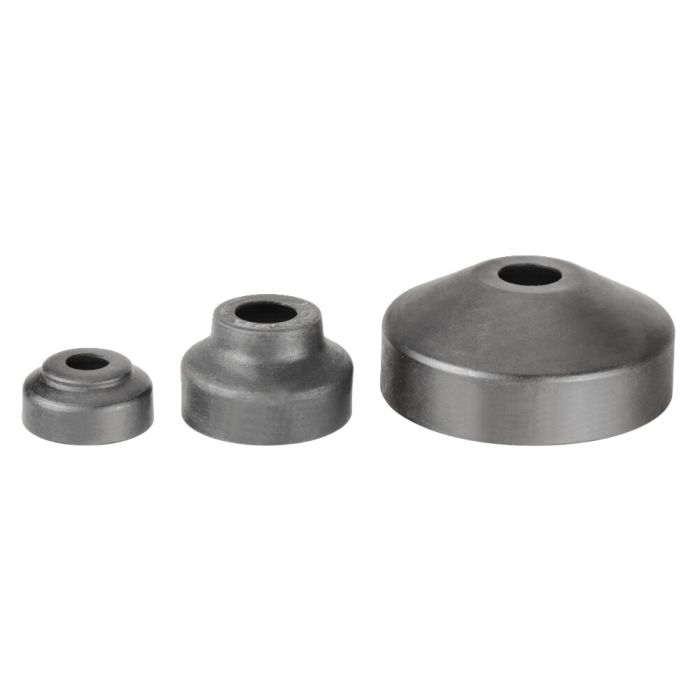

Splash protection
Fits 6964H-04-1, 6964H-09-1, 6964H-09-5
Order no.
326520
Application:
For protection against entry of chips and splash water.
Note:
Use only for hydraulic support element. Observe mounting position!
Not suitable for the support elements with backpressure query 6964HS.
For splash guard 6964H-11-20, make sure that the stroke is less than 9 mm.
| Order no. | 326520 |
|---|
