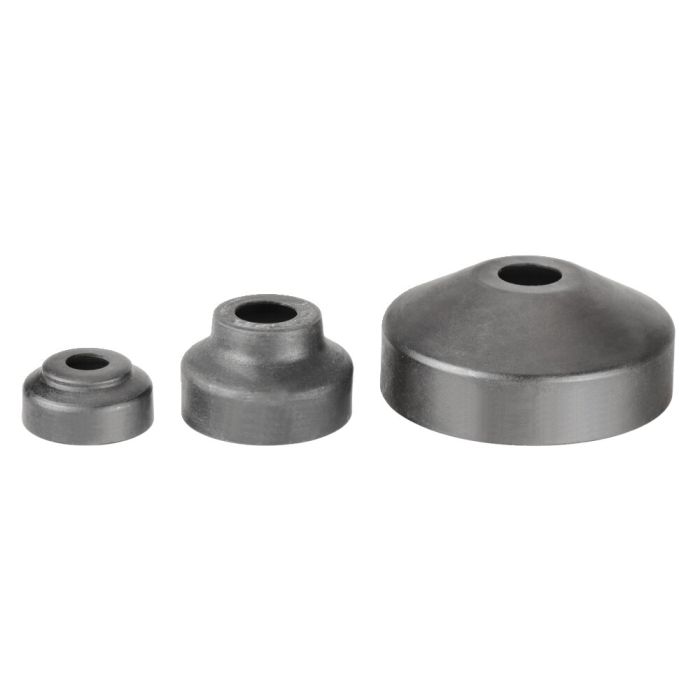

Splash protection
Suitable for 6964H-04-10
Order no.
570581
Application:
For protection against entry of chips and splash water.
Note:
Use only for hydraulic support element. Observe mounting position!
Not suitable for the support elements with backpressure query 6964HS.
For splash guard 6964H-11-20, make sure that the stroke is less than 9 mm.
| Order no. | 570581 |
|---|---|
| Max. operating pressure [bar] | 350 |
| Max. support force [kN] | 35.6 |
| Stroke [mm] | 15.8 |
| Mounting | Threaded design, Flange design |
| Positioning | Hydraulic |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Support Element, cartridge flange Nr. 562248 Max. support force 6,2 kN, stroke 12,5 mm, spring advanced, hydraulic advanced, thread M26x1,5
