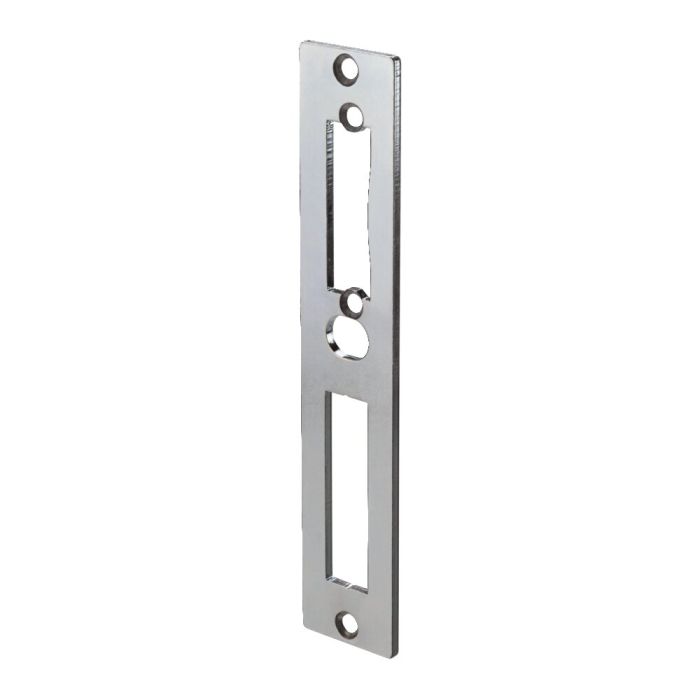

Striking plate, V2A
Suitable for 144ETNIG & 147BNIG & 140UNI & 140UNIG & 141UNIG, case width 40 mm
Order no.
553128
Application:
Suitable for striking boxes for sliding bolts:
Order no. 553126: 144ETNIG and 147BNIG Case width 30 mm
Order no. 553128: 144ETNIG and 147BNIG Case width 40 mm
Suitable for cased locks:
Order no. 553126: 140UNIG and 141UNIG Case width 30 mm
Order no. 553128: 140UNI, 140UNIG and 141UNIG Case width 40 mm
Note:
These striking plates can be used to advantage if the frame also serves as the "lock casing". It is then not necessary to create precise recesses for the hook latch and deadbolt.
The bores for fastening the striking plate in the closing or striking box are centrally arranged.
| Order no. | 553128 |
|---|---|
| Case width [mm] | 40 |
