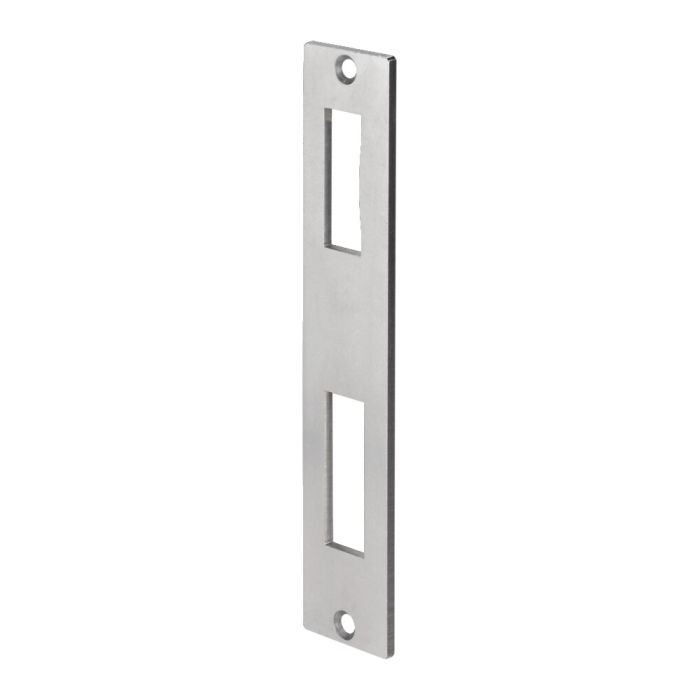

Striking plate, V2A
Suitable for 144ET & 146ET & 147 & 147A & 147B, 140PS, case width 40 mm
Order no.
555044
Application:
Suitable for striking boxes for sliding bolts:
Order no. 555043: 144ET, 146ET, 147, 147B Case width 30 mm
Order no. 555044: 144ET, 146ET, 147, 147A, 147B Case width 40 mm
Suitable for cased locks:
Order no. 555043: 140PS Case width 30 mm
Order no. 555044: 140PS Case width 40 mm
| Order no. | 555044 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Backset [mm] | 60 |
| Case width [mm] | 40 |
